2086-1108/300-000

2086-1108/300-000

Part Number
2086-1108/300-000
Manufacturer WAGO
Other Part Numbers
2946-2086-1108/300-000-ND
2946-2086-1108/300-000

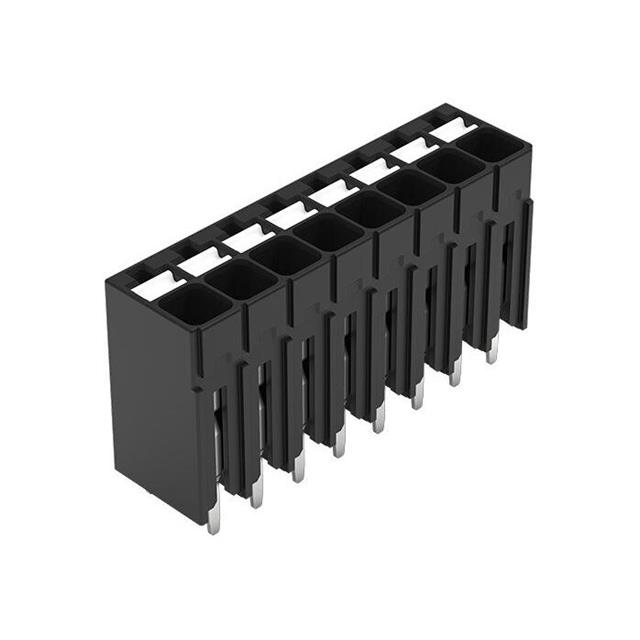

Description TERM BLK 8P TOP ENTRY 3.5MM PCB
Detailed Description 8 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole
Manufacturer Standard Lead Time 8 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer WAGO
Series
2086
Packaging
Tray
Part Status Active
Features Push Button Actuated
Color Black
Mounting Type Through Hole
Wire Gauge 16-24 AWG
Pitch 0.138" (3.50mm)
Mating Orientation Vertical with Board
Positions Per Level 8
Wire Termination Screwless - Push Button Clamp
Current 10 A
Number of Levels 1
Voltage 300 V

Documents & Media

RESOURCE TYPE LINK
Datasheets 2086-1108/300-000

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.90.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant

Available To Order

Tray

QUANTITY UNIT PRICE EXT PRICE
108 $2.36 $254.88
