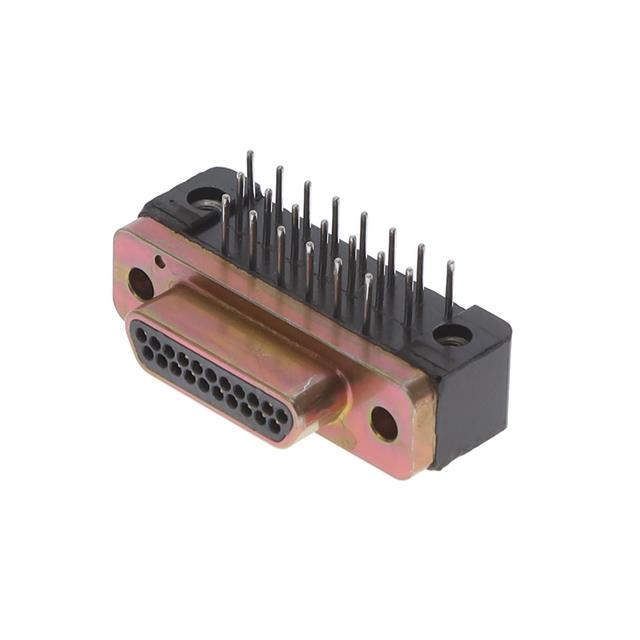

Part Number | MDM-21PCBR-TL56 |
---|---|
Manufacturer | VEAM (ITT Cannon) |
Other Part Numbers | 1003-MDM-21PCBR-TL56-ND 1003-MDM-21PCBR-TL56 1003-MDM-21PCBRTL56-ND MDM-21PCBRTL56 1003-MDM-21PCBRTL56 096514-0732 MDM21PCBRTL56 |
Description | MDM 21 P COND BOARD RIGHT |
Detailed Description | 21 Position D-Type, Micro-D Plug, Male Pins Connector |
Manufacturer Standard Lead Time | 24 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | VEAM (ITT Cannon) | |
Series | 83513-Style Micro D Metal Shell (MDM) | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Plug, Male Pins | |
Contact Finish | Gold | |
Current Rating (Amps) | 3A | |
Mounting Type | Panel Mount, Through Hole, Right Angle | |
Number of Positions | 21 | |
Number of Rows | 2 | |
Operating Temperature | -55°C ~ 150°C | |
Contact Type | Signal | |
Flange Feature | Housing/Shell (2-56) | |
Termination | Wire Leads | |
Connector Style | D-Type, Micro-D | |
Dielectric Material | Liquid Crystal Polymer (LCP) | |
Shell Material, Finish | Aluminum, Yellow Chromate Plated Cadmium | |
Contact Material | Copper Alloy | |
Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | |
Primary Material | Metal |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | MDM-21PCBR-TL56 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.4040 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
RoHS Status | RoHS non-compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $261.22 | $261.22 |
10 | $242.06 | $2,420.60 |
