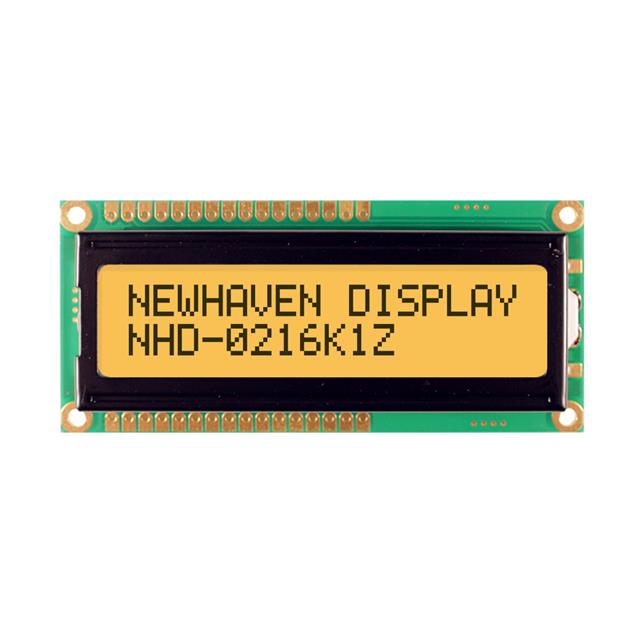

NHD-0216K1Z-FSA-GBW-L

NHD-0216K1Z-FSA-GBW-L

Part Number
NHD-0216K1Z-FSA-GBW-L
Manufacturer Newhaven Display, Intl.
Other Part Numbers
NHD-0216K1Z-FSA-GBW-L-ND
Description LCD MOD 32DIG 16X2 TRANSFLCT AMB
Detailed Description Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Amber Parallel 80.00mm x 36.00mm x 13.50mm
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Newhaven Display, Intl.
Series
Packaging
Box
Part Status Active
Display Type STN - Super-Twisted Nematic
Display Mode Transflective
Backlight LED - Amber
Interface Parallel
Operating Temperature -20°C ~ 70°C
Voltage - Supply 4.7V ~ 5.5V
Viewing Area 64.50mm L x 16.40mm W
Character Size 5.23mm H x 3.00mm W
Display Format 16 x 2
Character Format 5 x 8 Dots
Dot Size 0.56mm W x 0.61mm H
Controller Type SPLC780D OR ST7066U
Outline L x W x H 80.00mm x 36.00mm x 13.50mm
Text Color Blue
Background Color Amber
Number of Characters 32.0

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8531.20.0020
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

Box

QUANTITY UNIT PRICE EXT PRICE
100 $9.69 $969.00
