RH100-32.000-12-F-2020-EXT-TR

RH100-32.000-12-F-2020-EXT-TR

Part Number	RH100-32.000-12-F-2020-EXT-TR
Manufacturer	Raltron
Other Part Numbers	2151-RH100-32.000-12-F-2020-EXT-TR-ND 2151-RH100-32.000-12-F-2020-EXT-TRCT-ND 2151-RH100-32.000-12-F-2020-EXT-TRDKR-ND -2344-RH100-32.000-12-F-2020-EXT-TRCT 2151-RH100-32.000-12-F-2020-EXT-TRDKR -2344-RH100-32.000-12-F-2020-EXT-TR-ND -2344-RH1003200012F2020EXTTRDKRINACTIVE 2151-RH100-32.000-12-F-2020-EXT-TR -2344-RH100-32.000-12-F-2020-EXT-TR -2344-RH100-32.000-12-F-2020-EXT-CT-ND 2151-RH100-32.000-12-F-2020-EXT-TRCT

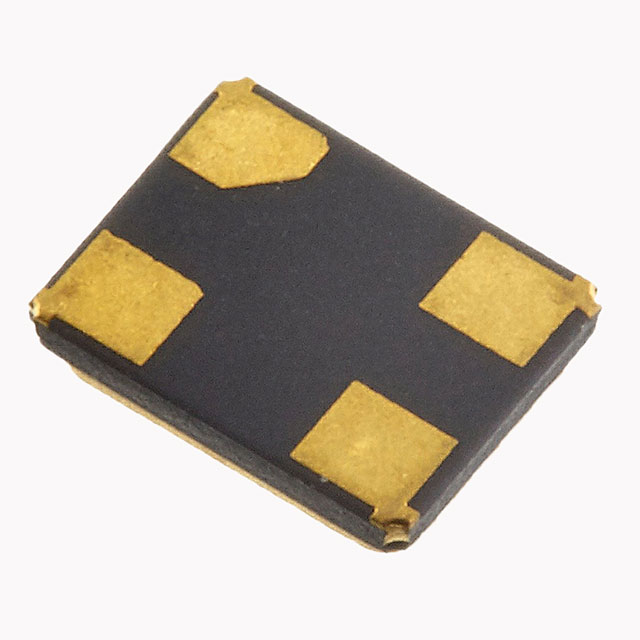

Description	CRYSTAL 32.0000MHZ 12PF SMD
Detailed Description	32 MHz ±20ppm Crystal 12pF 60 Ohms 4-SMD, No Lead
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Raltron
Series		RH100
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Load Capacitance		12pF
Size / Dimension		0.126" L x 0.098" W (3.20mm x 2.50mm)
Mounting Type		Surface Mount
Type		MHz Crystal
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±20ppm
Frequency Tolerance		±20ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.031" (0.80mm)
ESR (Equivalent Series Resistance)		60 Ohms
Frequency		32 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RH100-32.000-12-F-2020-EXT-TR

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0060
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 2938

Can ship immediately.

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Cut Tape (CT)	1	$0.18	$0.18
Total Amount: $0.18

Tape & Reel (TR)

QUANTITY	UNIT PRICE	EXT PRICE
3,000	$0.09	$270.00
6,000	$0.08	$480.00
15,000	$0.08	$1,200.00

Cut Tape (CT)

QUANTITY	UNIT PRICE	EXT PRICE
1	$0.18	$0.18
10	$0.15	$1.50
50	$0.13	$6.50
100	$0.12	$12.00
500	$0.11	$55.00
1,000	$0.09	$90.00
