Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Package / Case	Filter Type	Size / Dimension	Mounting Type	Number of Lines	Operating Temperature	Approval Agency	Ratings	Height (Max)	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Max)	DC Resistance (DCR) (Max)	Grade	Inductance @ Frequency	Impedance @ Frequency	Qualification
AM1DS-2412SH30-NZ DC DC CONVERTER 12V 1W Aimtec Datasheet	465 Marketplace	1 : $5.10 5 : $25.10 10 : $49.50 20 : $96.00 40 : $186.40 80 : $360.00 160 : $697.60 320 : $1,302.40 Tube	AM1DS-NZ (1W)	Tube	Active	-	7-SIP Module	-	0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.4mm)	Through Hole	-	-40°C ~ 105°C	cULus, cURus	-	-	-	-	-	-	-	-	-	-

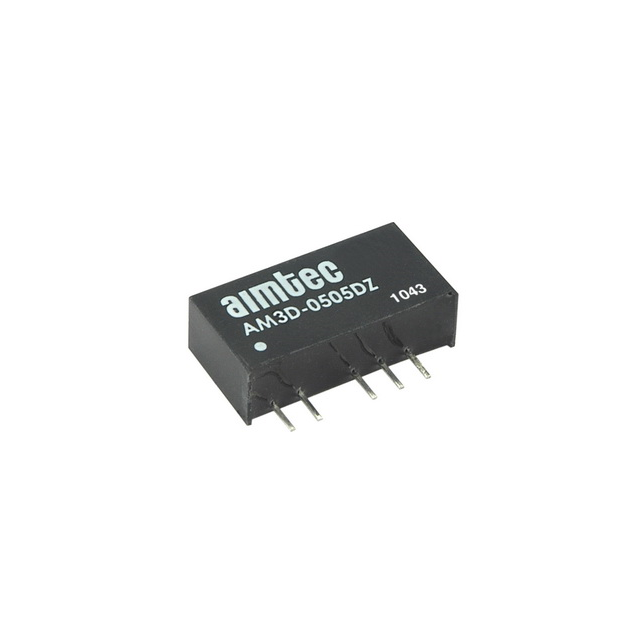

AM3D-0515SH30Z DC DC CONVERTER 15V 3W Aimtec Datasheet	55 Marketplace	1 : $8.12 5 : $40.05 10 : $78.90 20 : $153.20 40 : $297.20 80 : $575.20 160 : $1,113.60 Tube	AM3D-Z (3W)	Tube	Active	-	7-SIP Module	-	0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm)	Through Hole	-	-40°C ~ 85°C	CE	-	-	-	-	-	-	-	-	-	-

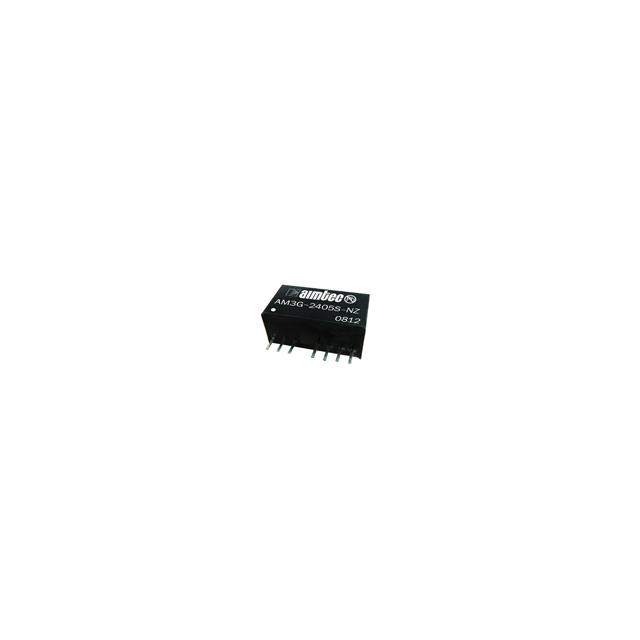

AM3G-0515D-NZ DC DC CONVERTER +/-15V 3W Aimtec Datasheet	220 Marketplace	1 : $13.66 5 : $67.65 10 : $134.00 22 : $288.86 44 : $565.84 88 : $1,109.68 176 : $2,175.36 Tube	AM3G-NZ (3W)	Tube	Active	Remote On/Off	8-SIP Module	-	0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)	Through Hole	-	-40°C ~ 100°C	-	-	-	-	-	-	-	-	-	-	-

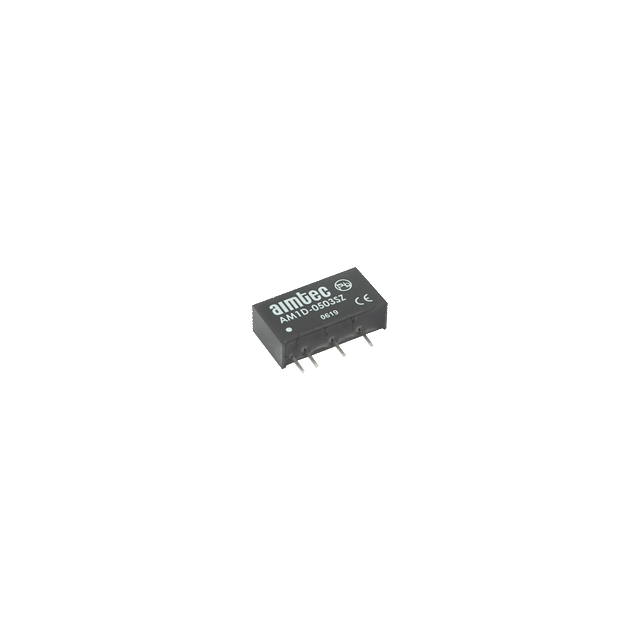

AM1D-2407SH30Z DC DC CONVERTER 7.2V 1W Aimtec Datasheet	200 Marketplace	1 : $4.10 5 : $20.05 10 : $39.30 20 : $77.00 40 : $151.20 60 : $222.00 80 : $290.40 100 : $356.00 120 : $417.60 Tube	AM1D-Z (1W)	Tube	Active	-	7-SIP Module	-	0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)	Through Hole	-	-40°C ~ 85°C	CE, cULus, cURus	-	-	-	-	-	-	-	-	-	-

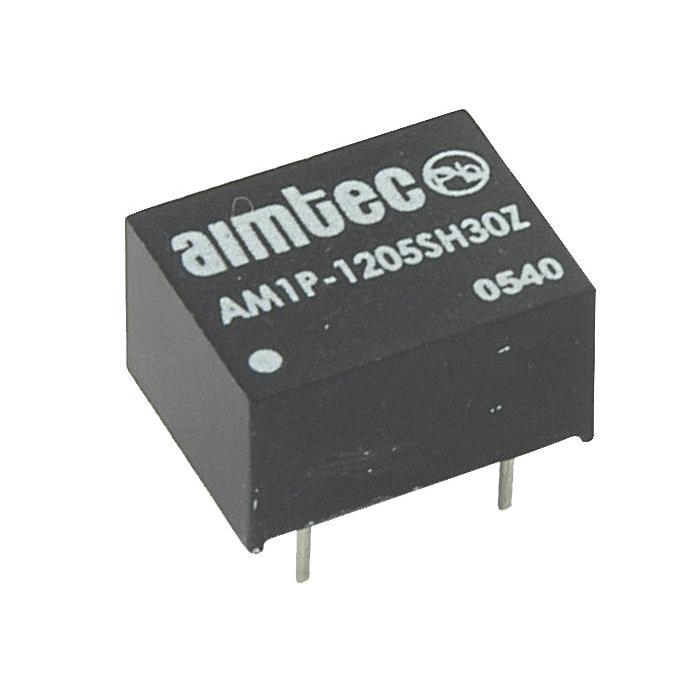

AM1P-2403SH30Z DC DC CONVERTER 3.3V 1W Aimtec Datasheet	400 Marketplace	1 : $3.53 5 : $17.40 10 : $34.30 25 : $83.25 40 : $131.60 80 : $260.00 160 : $502.40 Tube	AM1P-Z (1W)	Tube	Active	-	8-DIP Module	-	0.50" L x 0.40" W x 0.27" H (12.7mm x 10.2mm x 6.9mm)	Through Hole	-	-40°C ~ 85°C	CE	-	-	-	-	-	-	-	-	-	-
AM1D-1505DZ DC DC CONVERTER +/-5V 1W Aimtec Datasheet	200 Marketplace	1 : $3.80 5 : $18.60 10 : $36.50 20 : $71.40 40 : $140.00 60 : $205.80 80 : $268.80 100 : $330.00 120 : $387.60 Tube	AM1D-Z (1W)	Tube	Active	-	7-SIP Module	-	0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)	Through Hole	-	-40°C ~ 85°C	CE, cULus, cURus	-	-	-	-	-	-	-	-	-	-

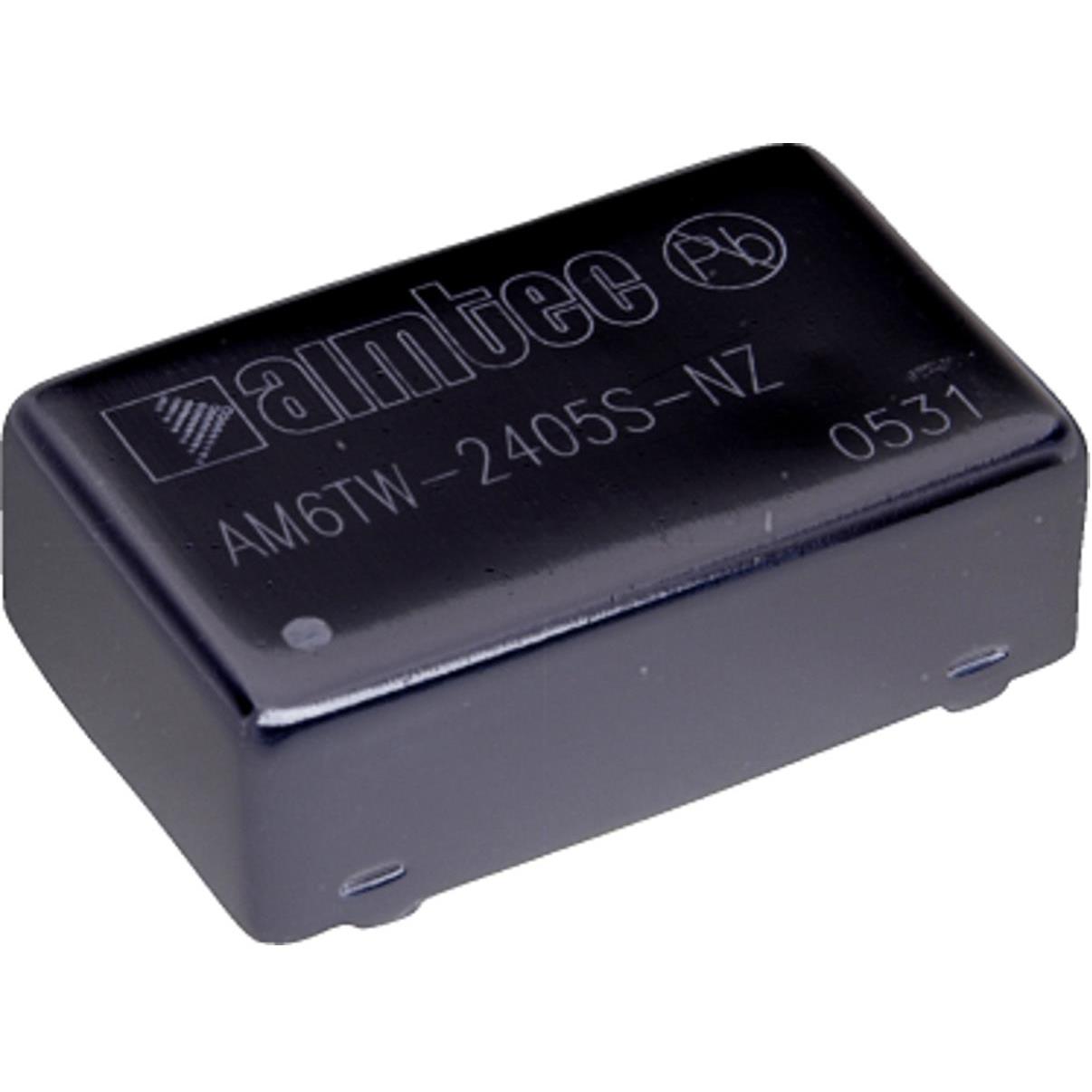

AM6TW-2412SH60-NZ DC DC CONVERTER 12V 6W Aimtec Datasheet	90 Marketplace	1 : $19.26 5 : $95.60 15 : $284.55 30 : $560.10 45 : $800.10 60 : $978.00 90 : $1,440.00 Tube	AM6TW-NZ (6W)	Tube	Active	-	24-DIP Module	-	1.24" L x 0.80" W x 0.40" H (31.6mm x 20.3mm x 10.2mm)	Through Hole	-	-40°C ~ 85°C	cURus	-	-	-	-	-	-	-	-	-	-
AM2D-0507DH60Z DC DC CONVERTER +/-7.2V 2W Aimtec Datasheet	200 Marketplace	1 : $9.71 5 : $47.60 10 : $93.30 15 : $137.10 25 : $224.00 50 : $439.00 100 : $860.00 230 : $1,938.90 440 : $3,634.40 Tube	AM2D-Z (2W)	Tube	Active	-	7-SIP Module	-	0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm)	Through Hole	-	-40°C ~ 85°C	CE	-	-	-	-	-	-	-	-	-	-

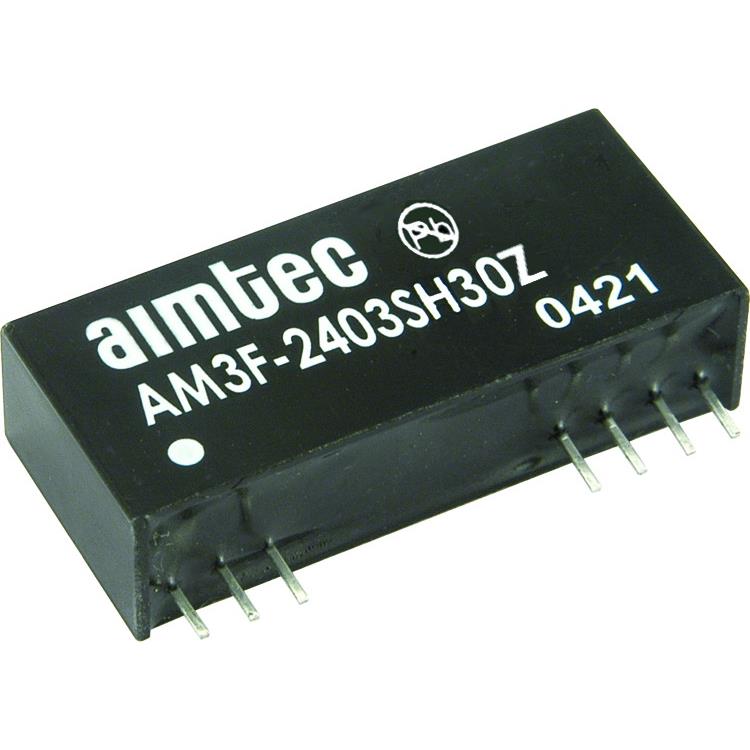

AM3F-0509SZ DC DC CONVERTER 9V 3W Aimtec Datasheet	4 Marketplace	1 : $8.32 5 : $40.40 10 : $78.40 20 : $152.20 40 : $301.60 80 : $596.80 160 : $1,182.40 Tube	AM3F-Z (3W)	Tube	Active	-	12-SIP Module	-	1.26" L x 0.32" W x 0.57" H (32.0mm x 8.0mm x 14.5mm)	Through Hole	-	-25°C ~ 85°C	CE	-	-	-	-	-	-	-	-	-	-
AM6CW-11005SH22-NZ DC DC CONVERTER 5V 6W Aimtec Datasheet	225 Marketplace	1 : $16.01 5 : $79.45 10 : $158.00 19 : $299.63 38 : $589.76 76 : $1,143.04 152 : $2,064.16 Tube	AM6CW-NZ (6W)	Tube	Active	-	-	-	1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)	Through Hole	-	-40°C ~ 85°C	CE, cURus, UL	-	-	-	-	-	-	-	-	-	-
