Crystals

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Box (TB)

Tape & Reel (TR)

Tray

Tube

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Surface Mount

Through Hole

Type

MEMS

MHz Crystal

MHz Crystal (w/Thermistor)

SAW

kHz Crystal (Tuning Fork)

Operating Mode

3rd Overtone

5th Overtone

Fundamental

Ratings

AEC-Q200

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Load Capacitance	Size / Dimension	Mounting Type	Type	Operating Temperature	Frequency Stability	Frequency Tolerance	Operating Mode	Ratings	Height - Seated (Max)	ESR (Equivalent Series Resistance)	Frequency

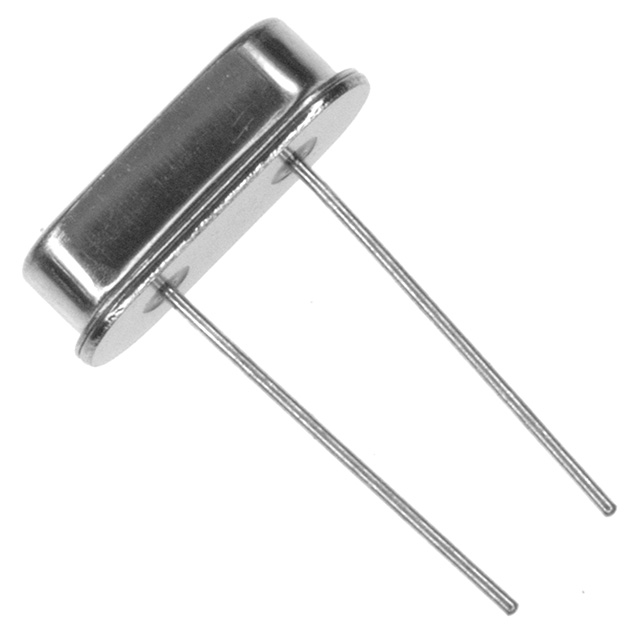

ECS-115.2-S-4X CRYSTAL 11.5200MHZ SERIES TH ECS Inc. International Datasheet	988 In Stock	1 : $0.70 10 : $5.80 50 : $26.00 200 : $92.00 600 : $264.00 1,000 : $370.00 2,600 : $910.00 5,000 : $1,700.00 10,000 : $3,300.00 Bulk	HC-49USX	Bulk	Active	HC-49/US	Series	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	60 Ohms	11.52 MHz
ECS-180-20-4X CRYSTAL 18.0000MHZ 20PF TH ECS Inc. International Datasheet	273 In Stock	1 : $0.70 10 : $5.80 50 : $26.00 200 : $92.00 600 : $264.00 1,000 : $370.00 2,600 : $910.00 5,000 : $1,700.00 10,000 : $3,300.00 Bulk	HC-49USX	Bulk	Active	HC-49/US	20pF	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	40 Ohms	18 MHz
ECS-35-17-4XDN CRYSTAL 3.579545MHZ 17PF TH ECS Inc. International Datasheet	3 In Stock	1 : $0.70 10 : $5.80 200 : $94.00 1,000 : $370.00 5,000 : $1,700.00 10,000 : $3,300.00 Bulk	HC-49USX-DN	Bulk	Active	HC-49/US	17pF	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-40°C ~ 85°C	±100ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	200 Ohms	3.579545 MHz
ECS-.327-12.5-13X CRYSTAL 32.7680KHZ 12.5PF TH ECS Inc. International Datasheet	50,766 In Stock	1 : $0.23 10 : $1.90 100 : $15.00 1,000 : $120.00 5,000 : $550.00 10,000 : $1,100.00 Bulk	ECS-2X6X	Bulk	Active	Cylindrical Can, Radial	12.5pF	0.083" Dia x 0.244" L (2.10mm x 6.20mm)	Through Hole	kHz Crystal (Tuning Fork)	-10°C ~ 60°C	-	±20ppm	Fundamental	-	0.244" (6.20mm)	35 kOhms	32.768 kHz
ECS-180-S-4X CRYSTAL 18.0000MHZ SERIES TH ECS Inc. International Datasheet	929 In Stock	1 : $0.49 10 : $4.10 50 : $18.50 200 : $66.00 600 : $186.00 1,000 : $290.00 Bulk	HC-49USX	Bulk	Active	HC-49/US	Series	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	40 Ohms	18 MHz
ECS-122.8-S-4X CRYSTAL 12.2880MHZ SERIES TH ECS Inc. International Datasheet	486 In Stock	1 : $0.70 10 : $5.80 200 : $92.00 1,000 : $370.00 5,000 : $1,700.00 10,000 : $3,300.00 Bulk	HC-49USX	Bulk	Active	HC-49/US	Series	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	60 Ohms	12.288 MHz
ECS-36-20-4XDN CRYSTAL 3.6864MHZ 20PF TH ECS Inc. International Datasheet	572 In Stock	1 : $0.71 10 : $6.30 200 : $104.00 1,000 : $410.00 5,000 : $1,900.00 10,000 : $3,700.00 Bulk	HC-49USX-DN	Bulk	Active	HC-49/US	20pF	0.447" L x 0.183" W (11.35mm x 4.65mm)	Through Hole	MHz Crystal	-40°C ~ 85°C	±100ppm	±30ppm	Fundamental	-	0.138" (3.50mm)	200 Ohms	3.6864 MHz

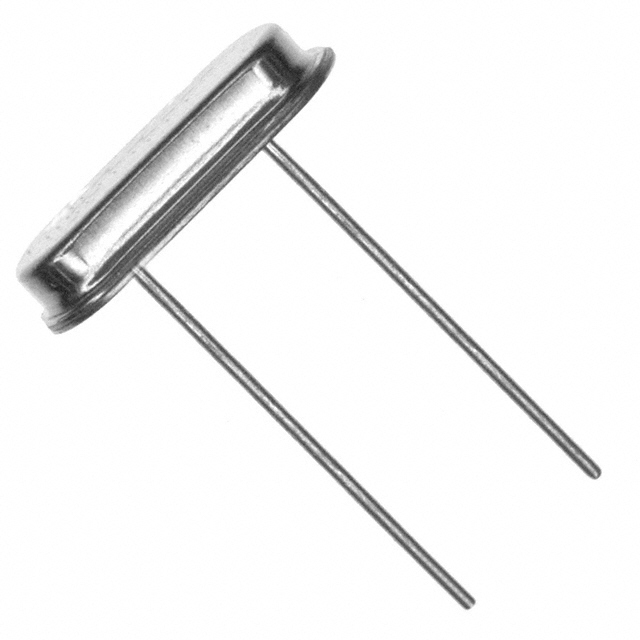

ECS-120-32-4VX CRYSTAL 12.0000MHZ 32PF TH ECS Inc. International Datasheet	821 In Stock	1 : $0.76 10 : $6.70 50 : $31.50 100 : $56.00 500 : $265.00 Bulk	HC-49USSX	Bulk	Active	HC-49/US	32pF	0.447" L x 0.197" W (11.35mm x 5.00mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.083" (2.10mm)	60 Ohms	12 MHz
ECS-245.7-20-4VX CRYSTAL 24.5760MHZ 20PF TH ECS Inc. International Datasheet	227 In Stock	1 : $1.18 10 : $10.50 200 : $172.00 1,000 : $680.00 5,000 : $3,200.00 10,000 : $6,100.00 Bulk	HC-49USSX	Bulk	Active	HC-49/US	20pF	0.447" L x 0.197" W (11.35mm x 5.00mm)	Through Hole	MHz Crystal	-10°C ~ 70°C	±50ppm	±30ppm	Fundamental	-	0.083" (2.10mm)	40 Ohms	24.576 MHz

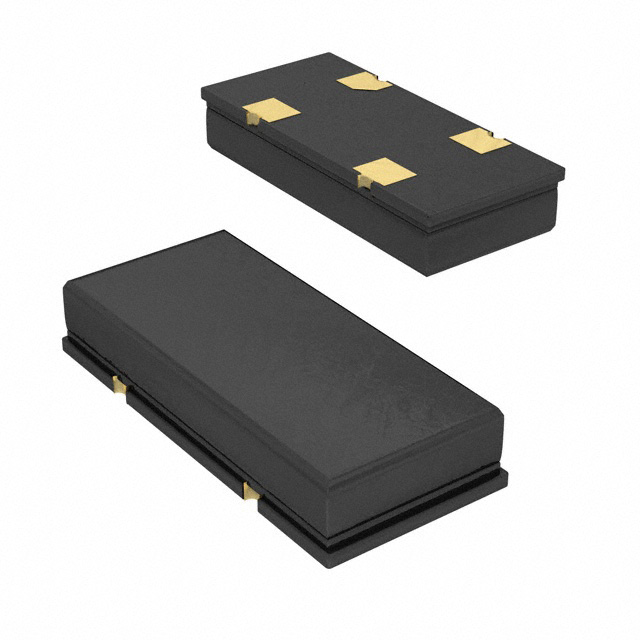

ECS-35-18-18-TR CRYSTAL 3.579545MHZ 18PF SMD ECS Inc. International Datasheet	620 In Stock	1,000 : $1,680.00 3,000 : $4,710.00 5,000 : $7,550.00 Tape & Reel (TR)	CSM-12	Tape & Reel (TR) Cut Tape (CT)	Active	4-SMD, No Lead	18pF	0.465" L x 0.217" W (11.80mm x 5.50mm)	Surface Mount	MHz Crystal	-40°C ~ 85°C	±100ppm	±30ppm	Fundamental	-	0.098" (2.50mm)	200 Ohms	3.579545 MHz
