PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Connector Type	Contact Finish	Voltage Rating	Mounting Type	Number of Positions	Pitch	Number of Rows	Operating Temperature	Number of Positions Loaded	Termination	Connector Usage	Connector Style	Contact Finish Thickness	Current Rating (Amps)
500-040-225-E02 ZD CONNECTOR, 2.0 MM HARD METRIC EDAC Inc. Datasheet	0 In Stock	Obsolete	500	Tube	Obsolete	Jackscrew Socket, Mating Guide	Receptacle, Female Sockets	Gold	250VAC	Board Edge, Through Hole, Right Angle	40	0.098" (2.50mm)	4	-65°C ~ 105°C	All	Press-Fit	-	ZD	Flash	-

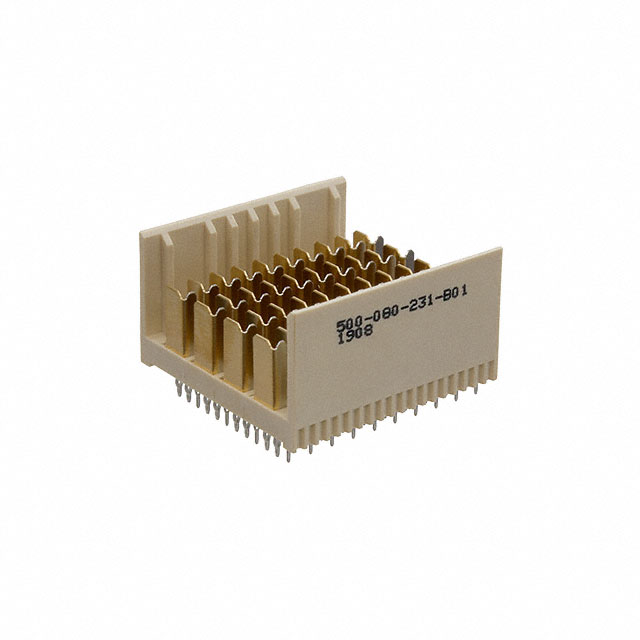

500-080-231-B01 ZD CONNECTOR 2.0MM HARD METRIC, EDAC Inc. Datasheet	0 In Stock	Obsolete	500	Tube	Obsolete	Jackscrew Socket, Mating Guide	Header, Male Pins and Blades	Gold	250VAC	Through Hole	80	0.098" (2.50mm)	8	-65°C ~ 105°C	All	Press-Fit	-	ZD	Flash	-
500-040-231-J01 ZD+ CONNECTOR, 2.0MM HARD METRIC EDAC Inc. Datasheet	0 In Stock	Obsolete	500	Tube	Obsolete	Jackscrew Socket, Mating Guide	Header, Male Pins and Blades	Gold	250VAC	Through Hole	40	0.098" (2.50mm)	4	-65°C ~ 105°C	All	Press-Fit	-	ZD Plus	Flash	-

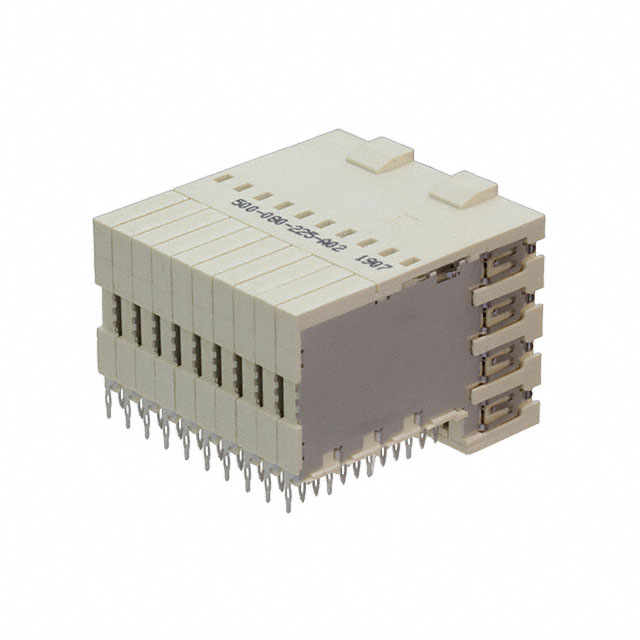

500-080-225-A02 ZD COONECTOR, 2.0 MM HARD METRIC EDAC Inc. Datasheet	0 In Stock	Obsolete	500	Tube	Obsolete	Jackscrew, Guide Pin	Receptacle, Female Sockets	Gold	250VAC	Board Edge, Through Hole, Right Angle	80	0.098" (2.50mm)	8	-65°C ~ 105°C	All	Press-Fit	-	ZD	Flash	-
500-040-231-C01 ZD CONNECTOR, 2.0 MM HARD METRIC EDAC Inc. Datasheet	0 In Stock	Obsolete	500	Tube	Obsolete	Jackscrew Socket, Mating Guide	Header, Male Pins and Blades	Gold	250VAC	Through Hole	40	0.098" (2.50mm)	4	-65°C ~ 105°C	All	Press-Fit	-	ZD	Flash	-

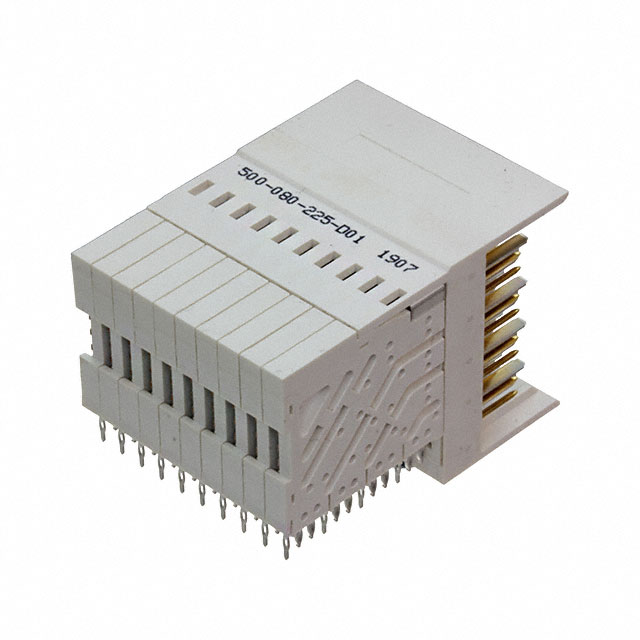

500-080-225-D01 ZD CONNECTOR, 2.0MM HARD METRICM EDAC Inc. Datasheet	0 In Stock	Obsolete	500	Tube	Obsolete	Jackscrew Socket, Mating Guide	Header, Male Pins and Blades	Gold	250VAC	Board Edge, Through Hole, Right Angle	80	0.098" (2.50mm)	8	-65°C ~ 105°C	All	Press-Fit	-	ZD	Flash	-
500-080-225-F02 ZD+ CONNECTOR, 2.0MM HARD METRIC EDAC Inc. Datasheet	0 In Stock	Obsolete	500	Tube	Obsolete	Jackscrew, Guide Pin	Receptacle, Female Sockets	Gold	250VAC	Board Edge, Through Hole, Right Angle	80	0.098" (2.50mm)	8	-65°C ~ 105°C	All	Press-Fit	-	ZD Plus	Flash	-
500-040-225-G02 ZD+ CONNECTOR, 2.0MM HARD METRIC EDAC Inc. Datasheet	0 In Stock	Obsolete	500	Tube	Obsolete	Jackscrew Socket, Mating Guide	Receptacle, Female Sockets	Gold	250VAC	Board Edge, Through Hole, Right Angle	40	0.098" (2.50mm)	4	-65°C ~ 105°C	All	Press-Fit	-	ZD Plus	Flash	-
500-080-231-H01 ZD+ CONNECTOR, 2.0MM HARD METRIC EDAC Inc. Datasheet	0 In Stock	Obsolete	500	Tube	Obsolete	Jackscrew Socket, Mating Guide	Header, Male Pins and Blades	Gold	250VAC	Through Hole	80	0.098" (2.50mm)	8	-65°C ~ 105°C	All	Press-Fit	-	ZD Plus	Flash	-
305-020-520-202 CONN EDGE DUAL FMALE 20POS 0.156 EDAC Inc. Datasheet	676 In Stock	1 : $8.27 25 : $176.50 100 : $654.00 1,000 : $4,820.00 Bulk	305	Bulk	Active	-	-	Gold	-	Panel Mount, Through Hole	20	0.156" (3.96mm)	-	-40°C ~ 105°C	-	Solder	-	-	10.0µin (0.25µm)	-
