Oscillators

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Free Hanging

Surface Mount

Surface Mount, Wettable Flank

Through Hole

Function

Amplitude Control

Enable/Disable

Enable/Disable (Reprogrammable)

Low-G Sensitivity

Standby (Power Down)

Tri-State (Output Enable)

Ratings

AEC-Q100

AEC-Q100, AEC-Q200

AEC-Q200

Base Resonator

Crystal

MEMS

Rubidium

Silicon

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Size / Dimension	Mounting Type	Output	Function	Type	Operating Temperature	Frequency Stability	Voltage - Supply	Ratings	Spread Spectrum Bandwidth	Current - Supply (Max)	Current - Supply (Disable) (Max)	Height - Seated (Max)	Absolute Pull Range (APR)	Frequency	Base Resonator

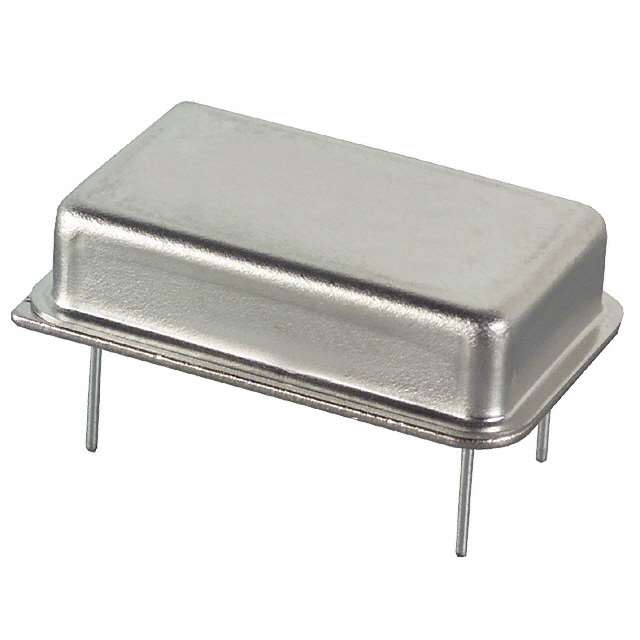

ECS-100AX-250 XTAL OSC XO 25.0000MHZ TTL TH ECS Inc. International Datasheet	1,032 In Stock	1 : $3.15 25 : $77.00 100 : $256.00 1,000 : $2,120.00 5,000 : $9,500.00 Bulk	ECS-100X	Bulk	Active	14-DIP, 4 Leads (Full Size, Metal Can)	0.821" L x 0.520" W (20.86mm x 13.20mm)	Through Hole	TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	70mA	-	0.200" (5.08mm)	-	25 MHz	Crystal

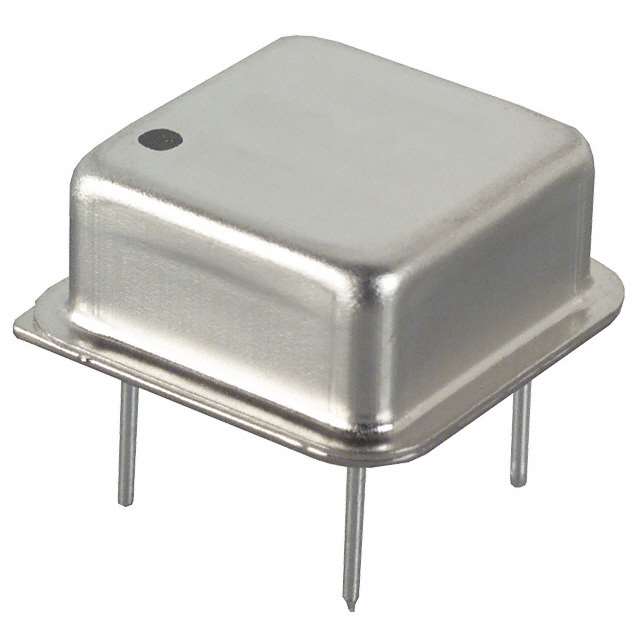

ECS-2100AX-196.6 XTAL OSC XO 19.6608MHZ HCMOS TTL ECS Inc. International Datasheet	354 In Stock	1 : $3.15 40 : $123.20 80 : $234.40 120 : $307.20 520 : $1,294.80 1,000 : $2,120.00 2,520 : $4,989.60 5,000 : $9,500.00 Tube	ECS-2100X	Tube	Active	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)	Through Hole	HCMOS, TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	25mA	-	0.213" (5.40mm)	-	19.6608 MHz	Crystal
ECS-2100AX-036 XTAL OSC XO 3.6864MHZ HCMOS TTL ECS Inc. International Datasheet	1,329 In Stock	1 : $3.15 40 : $123.20 80 : $234.40 120 : $307.20 520 : $1,294.80 1,000 : $2,120.00 2,520 : $4,989.60 5,000 : $9,500.00 Tube	ECS-2100X	Tube	Active	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)	Through Hole	HCMOS, TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	25mA	-	0.213" (5.40mm)	-	3.6864 MHz	Crystal
ECS-2100AX-200 XTAL OSC XO 20.0000MHZ HCMOS TTL ECS Inc. International Datasheet	4,036 In Stock	1 : $2.21 40 : $86.40 80 : $164.80 120 : $217.20 Tube	ECS-2100X	Tube	Active	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)	Through Hole	HCMOS, TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	25mA	-	0.213" (5.40mm)	-	20 MHz	Crystal
ECS-2100AX-147.4 XTAL OSC XO 14.7456MHZ HCMOS TTL ECS Inc. International Datasheet	1,573 In Stock	1 : $2.21 40 : $86.40 80 : $164.80 120 : $217.20 Tube	ECS-2100X	Tube	Active	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)	Through Hole	HCMOS, TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	25mA	-	0.213" (5.40mm)	-	14.7456 MHz	Crystal
ECS-2100AX-184 XTAL OSC XO 18.4320MHZ HCMOS TTL ECS Inc. International Datasheet	774 In Stock	1 : $2.21 40 : $86.40 80 : $164.80 120 : $217.20 Tube	ECS-2100X	Tube	Active	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)	Through Hole	HCMOS, TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	25mA	-	0.213" (5.40mm)	-	18.432 MHz	Crystal
ECS-100A-240 XTAL OSC XO 24.0000MHZ TTL TH ECS Inc. International Datasheet	721 In Stock	1 : $3.15 25 : $77.00 100 : $256.00 1,000 : $2,120.00 5,000 : $9,500.00 Bulk	ECS-100	Bulk	Active	14-DIP, 4 Leads (Full Size, Metal Can)	0.821" L x 0.520" W (20.86mm x 13.20mm)	Through Hole	TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	70mA	-	0.200" (5.08mm)	-	24 MHz	Crystal
ECS-100A-480 XTAL OSC XO 48.0000MHZ TTL TH ECS Inc. International Datasheet	1,008 In Stock	1 : $3.15 25 : $77.00 50 : $146.50 100 : $256.00 500 : $1,245.00 1,000 : $2,120.00 2,500 : $4,950.00 5,000 : $9,500.00 Tube	ECS-100	Tube	Active	14-DIP, 4 Leads (Full Size, Metal Can)	0.821" L x 0.520" W (20.86mm x 13.20mm)	Through Hole	TTL	-	XO (Standard)	0°C ~ 70°C	±100ppm	5V	-	-	70mA	-	0.200" (5.08mm)	-	48 MHz	Crystal

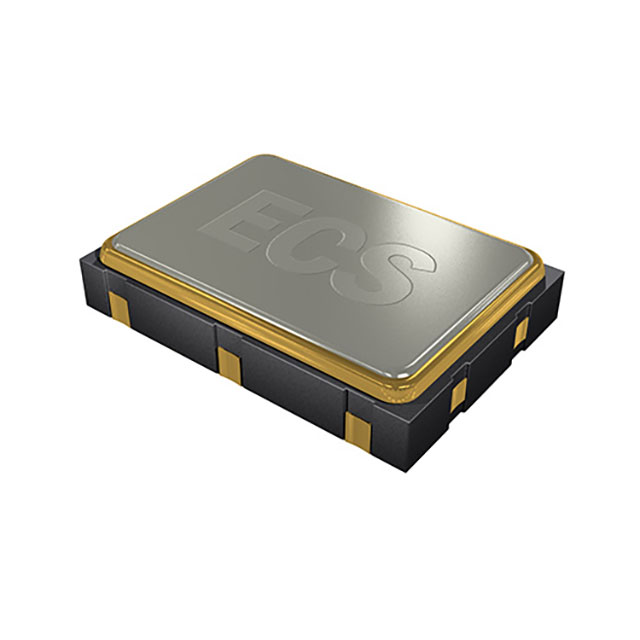

ECX-L37CN-148.500 XTAL OSC XO 148.5 MHZ LVDS SMD ECS Inc. International Datasheet	72 In Stock	1 : $6.19 10 : $58.30 50 : $283.00 100 : $548.00 500 : $2,565.00 1,000 : $4,420.00 Strip	ECX-L ECSpressCON™	Strip	Active	6-SMD, No Lead	0.276" L x 0.197" W (7.00mm x 5.00mm)	Surface Mount	LVDS	Enable/Disable	XO (Standard)	-40°C ~ 85°C	±25ppm	3.3V	-	-	20mA	-	0.067" (1.70mm)	-	148.5 MHz	Crystal
ECX-L37CN-300.000 XTAL OSC XO 300 MHZ LVDS SMD ECS Inc. International Datasheet	47 In Stock	1 : $6.19 10 : $58.30 50 : $283.00 100 : $548.00 500 : $2,565.00 1,000 : $4,420.00 Strip	ECX-L ECSpressCON™	Strip	Active	6-SMD, No Lead	0.276" L x 0.197" W (7.00mm x 5.00mm)	Surface Mount	LVDS	Enable/Disable	XO (Standard)	-40°C ~ 85°C	±25ppm	3.3V	-	-	22mA	16mA	0.067" (1.70mm)	-	300 MHz	Crystal
