Pressure Sensors, Transducers_Sensors, Transducers_All Tested Limited_Integrated Circuits (ICs)_Semiconductors_Circuit Protection_Connectors_Cable Assemblies

Pressure Sensors, Transducers

Product Status

Active

Obsolete

Discontinued

Not For New Designs

Features

Amplified Output

Amplified Output, Temperature Compensated

Digital Output, Temperature Compensated

Honeywell PPT/PPT2 Emulation

PC Polished

Shutdown Mode

Shutdown Mode, Standby Mode

Standby Mode

Temperature Compensated

Mounting Type

Chassis Mount

Surface Mount

Surface Mount, Wettable Flank

Through Hole

Applications

Board Level

Board Mount

Industrial

Industrial Automation

Medical Ventilation

Port Style

Barbed

Barbless

Filtered

Needle

No Port

Threaded

Grade

Automotive

Qualification

AEC-Q100

Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Package / Case	Output Type	Mounting Type	Output	Operating Pressure	Pressure Type	Accuracy	Operating Temperature	Termination Style	Voltage - Supply	Port Size	Applications	Supplier Device Package	Port Style	Maximum Pressure	Grade	Qualification

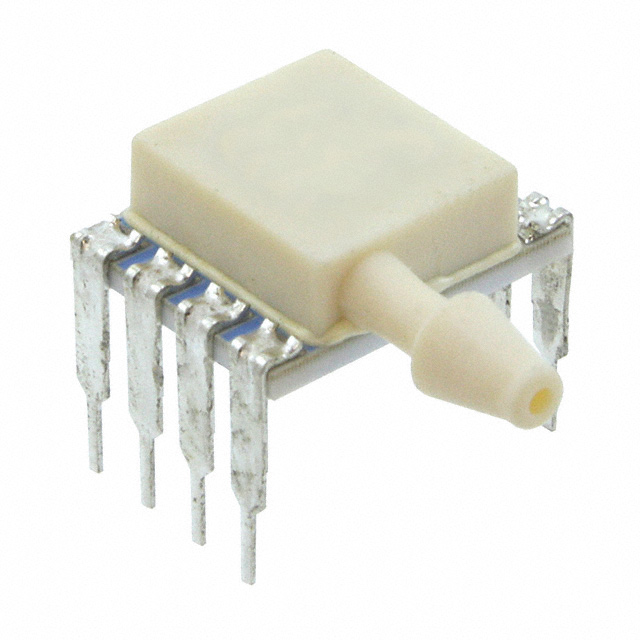

4515-SS5A005GP SENSOR PRESS GAUGE 5" H2O 8DIP TE Connectivity Measurement Specialties Datasheet	13 Marketplace	2 : $116.78 8 : $449.68 Bulk		Bulk	Active	Amplified Output, Temperature Compensated	8-DIP Module	Analog Voltage	Through Hole	0.5 V ~ 4.5 V	0.18PSI (1.25kPa)	Vented Gauge	±0.25%	-10°C ~ 85°C	PC Pin	5V	Male - 0.14" (3.56mm) Tube	-	-	Barbed	10PSI (68.95kPa)	-	-
M325M-00000E-010BG SENSOR 145.04PSIG 1/4" .02A TE Connectivity Measurement Specialties Datasheet	22 In Stock	1 : $96.17 10 : $801.40 25 : $1,936.75 100 : $7,480.00 Box	M3200	Box	Active	Amplified Output, Temperature Compensated	Cylinder, Threaded	Analog Current	-	4 mA ~ 20 mA	145.04PSI (1000kPa)	Vented Gauge	±0.25%	-40°C ~ 125°C	Cable/Wire Leads	9V ~ 30V	Male - 1/4" (6.35mm) BSPT	-	-	Threaded	290PSI (2000kPa)	-	-
M3234-000002-016BG SENSOR 232.06PSIG 4.5V TE Connectivity Measurement Specialties Datasheet	7 In Stock	1 : $66.78 10 : $618.80 Box	M3200	Box	Active	Amplified Output, Temperature Compensated	Cylinder, Threaded	Analog Voltage	-	0.5 V ~ 4.5 V	232.06PSI (1600kPa)	Vented Gauge	±0.25%	-40°C ~ 125°C	Connector	4.75V ~ 5.25V	-	-	-	Threaded	464PSI (3200kPa)	-	-
325534009-00 SENSOR 15.95PSIA 16BIT TE Connectivity Measurement Specialties Datasheet	120 In Stock	1 : $43.93 10 : $366.10 25 : $810.50 80 : $2,510.40 Tray		Tray	Active	-	8-SMD Module	SPI	Surface Mount	16 b	0.15PSI ~ 15.95PSI (1kPa ~ 110kPa)	Absolute	-	-40°C ~ 125°C	SMD (SMT) Tab	2.2V ~ 3.6V	-	Board Mount	-	No Port	145.04PSI (1000kPa)	-	-
154BC-S-015PG-C SENSOR 15PSIG 0.1V TE Connectivity Measurement Specialties Datasheet	16 In Stock	1 : $116.44 20 : $1,940.80 40 : $3,752.00 100 : $9,057.00 Tube		Tube	Active	Temperature Compensated	Module	Wheatstone Bridge	-	0 mV ~ 100 mV	15PSI (103.42kPa)	Vented Gauge	±0.3%	-40°C ~ 125°C	Connector	-	-	Board Mount	-	No Port	30PSI (206.84kPa)	-	-
154N-100G-RT SENSOR 100PSIG 0.1V TE Connectivity Measurement Specialties Datasheet	2 In Stock	1 : $128.55 Tube		Tube	Active	Temperature Compensated	Module	Wheatstone Bridge	-	0 mV ~ 100 mV	100PSI (689.48kPa)	Vented Gauge	±0.1%	-40°C ~ 125°C	Connector	-	-	Board Mount	-	No Port	300PSI (2068.43kPa)	-	-
154N-050A-R SENSOR 50PSIA 0.1V TE Connectivity Measurement Specialties Datasheet	43 In Stock	1 : $155.80 16 : $2,285.12 Tube		Tube	Active	Temperature Compensated	Module	Wheatstone Bridge	-	0 mV ~ 100 mV	50PSI (344.74kPa)	Absolute	±0.1%	-40°C ~ 125°C	Connector	-	-	Board Mount	-	No Port	150PSI (1034.21kPa)	-	-
85-015G-FC SENSOR 15PSIG 0.1V TE Connectivity Measurement Specialties Datasheet	49 In Stock	1 : $133.44 16 : $1,779.20 32 : $3,439.68 Tube		Tube	Active	Temperature Compensated	Cylinder	Wheatstone Bridge	-	0 mV ~ 100 mV	15PSI (103.42kPa)	Vented Gauge	±0.1%	-40°C ~ 125°C	Cable with Connector	-	-	Board Mount	-	No Port	45PSI (310.26kPa)	-	-
85-100A-8R SENSOR 100PSIA 0.1V TE Connectivity Measurement Specialties Datasheet	29 In Stock	1 : $112.08 16 : $1,494.40 32 : $2,889.28 112 : $9,763.04 Tube		Tube	Active	Temperature Compensated	Cylinder	Wheatstone Bridge	-	0 mV ~ 100 mV	100PSI (689.48kPa)	Absolute	±0.1%	-40°C ~ 125°C	Cable with Connector	-	-	Board Mount	-	No Port	300PSI (2068.43kPa)	-	-
86-015G-RT SENSOR 15PSIG 0.1V TE Connectivity Measurement Specialties Datasheet	2 In Stock	1 : $89.89 16 : $1,211.04 32 : $2,270.72 112 : $7,683.20 Tube		Tube	Active	Temperature Compensated	Cylinder	Wheatstone Bridge	-	0 mV ~ 100 mV	15PSI (103.42kPa)	Vented Gauge	±0.1%	-40°C ~ 125°C	Cable with Connector	-	-	Board Mount	-	No Port	45PSI (310.26kPa)	-	-
