PTC Resettable Fuses

Packaging

Bag

Box

Bulk

Cut Tape (CT)

Strip

Tape & Box (TB)

Tape & Reel (TR)

Tray

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Mounting Type

Holder

Surface Mount

Through Hole

User Defined

Type

Ceramic

Polymeric

Ratings

AEC-Q200

PS300, PS400

Grade

Automotive

Qualification

AEC-Q200

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Size / Dimension	Mounting Type	Type	Operating Temperature	Lead Spacing	Approval Agency	Current - Hold (Ih) (Max)	Current - Trip (It)	Voltage - Max	Ratings	Height - Seated (Max)	Thickness (Max)	Grade	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Qualification

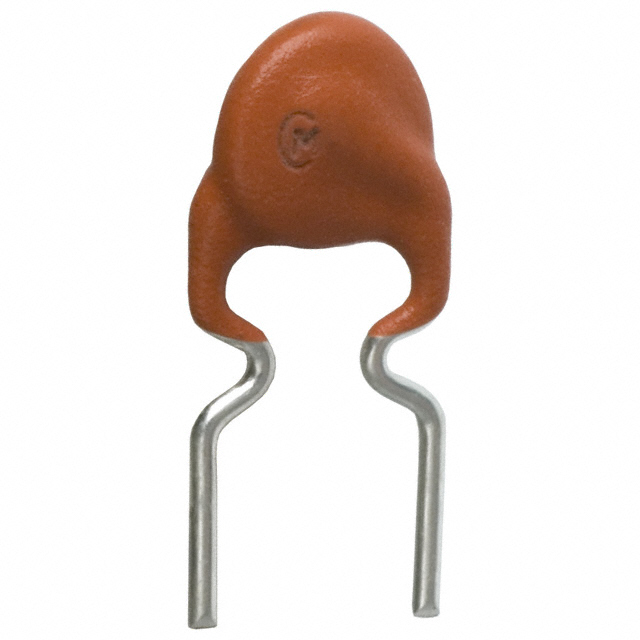

PTGL09AS2R2K3B51B0 PTC RESET FUSE 51V 522MA RADIAL TOKO / Murata Datasheet	0 In Stock	Obsolete	POSISTOR®, PTGL	Bulk	Obsolete	Radial, Disc	0.366" Dia x 0.138" T (9.30mm x 3.50mm)	Through Hole	Ceramic	-30°C ~ 85°C	0.197" (5.00mm)	UL	522 mA	694 mA	51V	-	0.563" (14.30mm)	-	-	4 A	-	-	-	2.2 Ohms	-

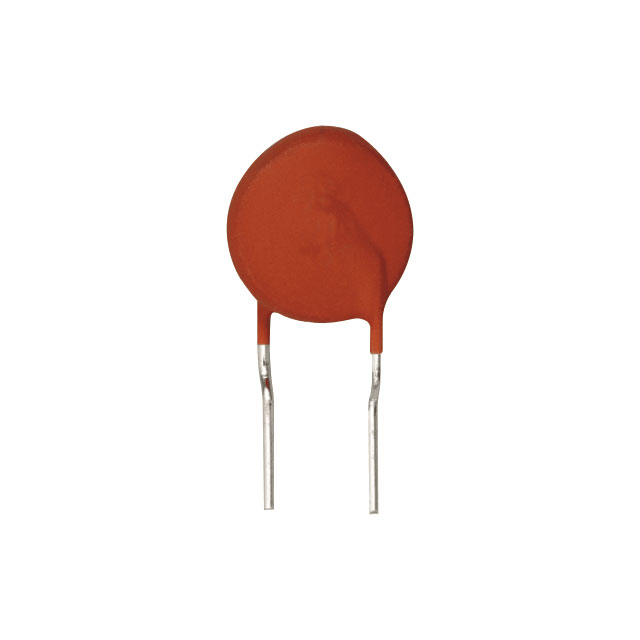

PTGL05AS270K6B51B0 PTC RESET FUSE 140V 134MA RADIAL TOKO / Murata Datasheet	0 In Stock	Obsolete	POSISTOR®, PTGL	Bulk	Obsolete	Radial, Disc	0.217" Dia x 0.177" T (5.50mm x 4.50mm)	Through Hole	Ceramic	-30°C ~ 85°C	0.197" (5.00mm)	UL	134 mA	178 mA	140V	-	0.413" (10.50mm)	-	-	1 A	-	-	-	27 Ohms	-

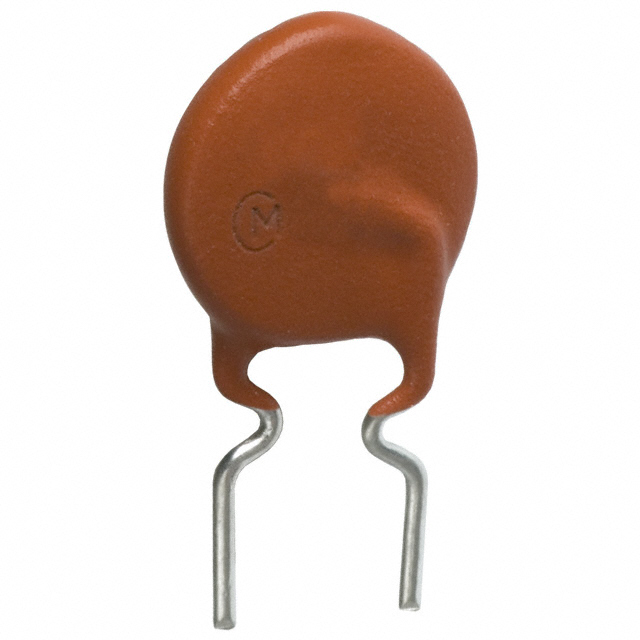

PTGL05AR181M9N52A0 PTC RESET FUSE 265V 180OHM 120C TOKO / Murata Datasheet	0 In Stock	Obsolete	Posistor®	Tape & Box (TB)	Obsolete	Radial, Disc	-	Through Hole	Ceramic	-	-	-	-	-	-	-	-	-	-	-	-	-	-	18.1 Ohms	-

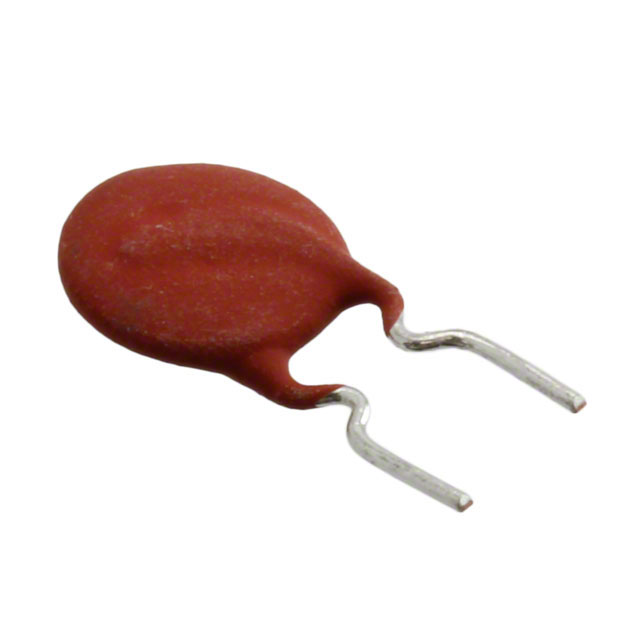

PTGL07AS1R8K2B51A0 PTC RESET FUSE 30V 532MA RADIAL TOKO / Murata Datasheet	0 In Stock	Obsolete	POSISTOR®, PTGL	Tape & Box (TB)	Obsolete	Radial, Disc	0.287" Dia x 0.138" T (7.30mm x 3.50mm)	Through Hole	Ceramic	-30°C ~ 85°C	0.197" (5.00mm)	-	532 mA	708 mA	30V	-	0.484" (12.30mm)	-	-	5 A	-	-	-	1.8 Ohms	-

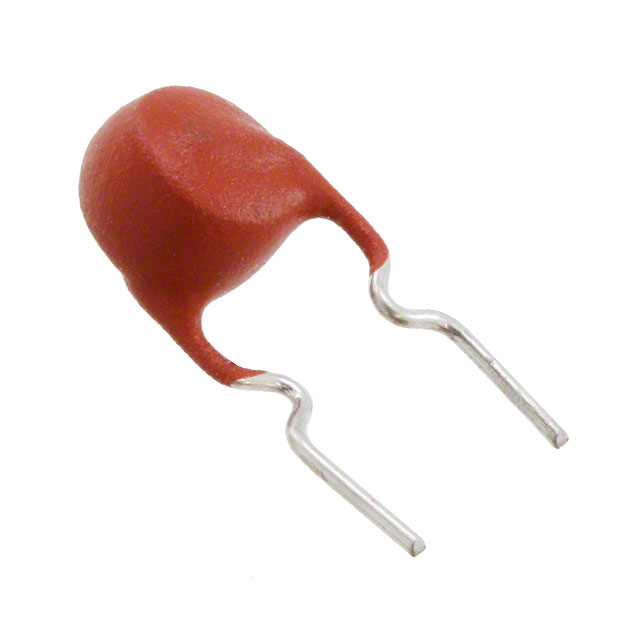

PTGL04AS220K4N51A0 PTC RESET FUSE 60V 112MA RADIAL TOKO / Murata Datasheet	0 In Stock	Obsolete	POSISTOR®, PTGL	Tape & Box (TB)	Obsolete	Radial, Disc	0.177" Dia x 0.138" T (4.50mm x 3.50mm)	Through Hole	Ceramic	-30°C ~ 85°C	0.197" (5.00mm)	UL	112 mA	149 mA	60V	-	0.551" (14.00mm)	-	-	1 A	-	-	-	22 Ohms	-
PTGL07AR650H8B52B0 PTC RESET FUSE 265V 84MA RADIAL TOKO / Murata Datasheet	0 In Stock	Obsolete	POSISTOR®, PTGL	Bulk	Obsolete	Radial, Disc	0.315" Dia x 0.236" T (8.00mm x 6.00mm)	Through Hole	Ceramic	-10°C ~ 60°C	0.197" (5.00mm)	UL	84 mA	162 mA	265V	-	0.551" (14.00mm)	-	-	1 A	-	-	-	65 Ohms	-
PTGL07BD220N3B51B0 PTC RESET FUSE 32V 75MA RADIAL TOKO / Murata Datasheet	0 In Stock	Obsolete	POSISTOR®, PTGL	Bulk	Obsolete	Radial, Disc	0.291" Dia x 0.157" T (7.40mm x 4.00mm)	Through Hole	Ceramic	-30°C ~ 85°C	0.197" (5.00mm)	-	75 mA	160 mA	32V	-	0.528" (13.40mm)	-	-	1.5 A	-	-	-	22 Ohms	-
PTGL07BD150N3B51B0 PTC RESET FUSE 32V 100MA RADIAL TOKO / Murata Datasheet	0 In Stock	Obsolete	POSISTOR®, PTGL	Bulk	Obsolete	Radial, Disc	0.291" Dia x 0.157" T (7.40mm x 4.00mm)	Through Hole	Ceramic	-10°C ~ 60°C	0.197" (5.00mm)	UL	100 mA	195 mA	32V	-	0.528" (13.40mm)	-	-	1.5 A	-	-	-	15 Ohms	-
PTGL09AS3R3K4B51B0 PTC RESET FUSE 60V 421MA RADIAL TOKO / Murata Datasheet	0 In Stock	Obsolete	POSISTOR®, PTGL	Bulk	Obsolete	Radial, Disc	0.366" Dia x 0.138" T (9.30mm x 3.50mm)	Through Hole	Ceramic	-30°C ~ 85°C	0.197" (5.00mm)	UL	421 mA	560 mA	60V	-	0.563" (14.30mm)	-	-	4 A	-	-	-	3.3 Ohms	-
PTGL05AS3R9K2B51B0 PTC RESET FUSE 30V 340MA RADIAL TOKO / Murata Datasheet	0 In Stock	Obsolete	POSISTOR®, PTGL	Bulk	Obsolete	Radial, Disc	0.217" Dia x 0.138" T (5.50mm x 3.50mm)	Through Hole	Ceramic	-30°C ~ 85°C	0.197" (5.00mm)	UL	340 mA	452 mA	30V	-	0.413" (10.50mm)	-	-	3.5 A	-	-	-	3.9 Ohms	-
