RF Filters

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Filter Type

Balance

Band Pass

Band Stop

High Pass

Low Pass

Mounting Type

Chassis Mount

Free Hanging (In-Line)

Surface Mount

Surface Mount, MLCC

Through Hole

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Filter Type	Size / Dimension	Mounting Type	Frequency	Insertion Loss	Bandwidth	Ripple	Height (Max)

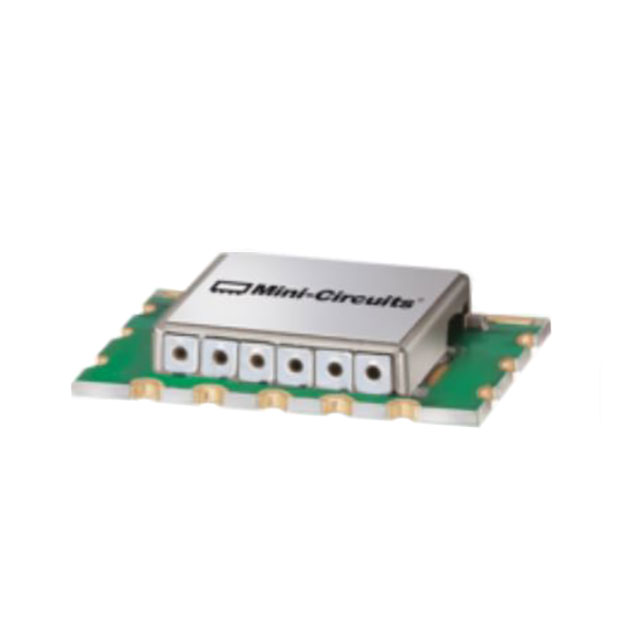

CBP-1228C+ RF FILT BAND PASS 1.228GHZ 13SMD Mini-Circuits Datasheet	7 In Stock	1 : $58.10 10 : $561.60 25 : $1,355.75 50 : $2,614.50 100 : $4,794.00 Strip	CBP-1228C+	Strip	Active	13-SMD Module	Band Pass	0.750" L x 0.750" W (19.05mm x 19.05mm)	Surface Mount	1.228GHz Center	3dB	21MHz	-	0.225" (5.71mm)
CBP-1538J+ RF FILT BAND PASS 1.538GHZ 11SMD Mini-Circuits Datasheet	9 In Stock	1 : $89.82 10 : $868.30 25 : $2,096.00 50 : $4,042.00 100 : $7,411.00 Strip	CBP-1538J+	Strip	Active	11-SMD Module	Band Pass	0.660" L x 0.460" W (16.76mm x 11.68mm)	Surface Mount	1.538GHz Center	1.7dB	41MHz	-	0.190" (4.83mm)

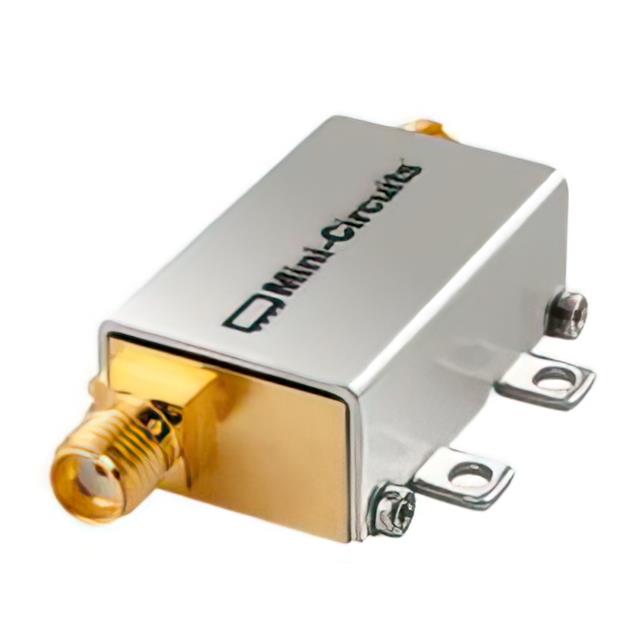

ZX75BP-1135-S+ RF FILT BANDPASS 1.135GHZ INLINE Mini-Circuits Datasheet	5 In Stock	1 : $111.40 Tray	ZX75BP	Tray	Active	Inline, SMA Connection, F and M	Band Pass	1.200" L x 0.750" W (30.48mm x 19.05mm)	Free Hanging (In-Line)	1.135GHz Center	1.2dB	470MHz	-	0.490" (12.45mm)

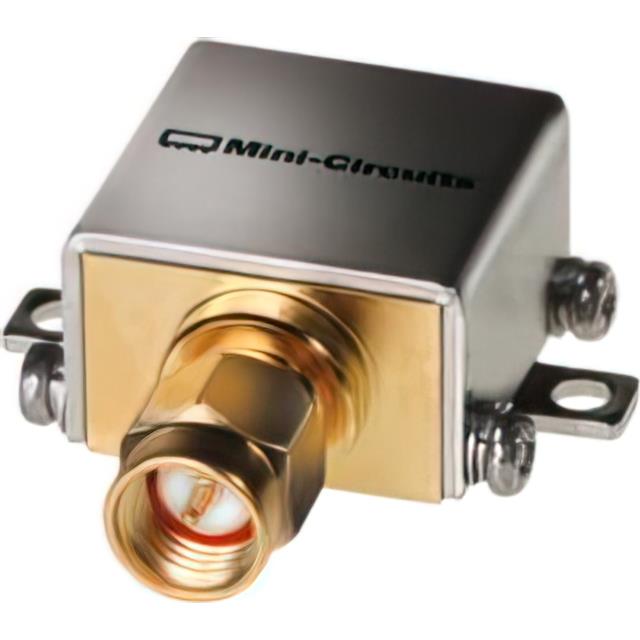

ZX75LP-264-S+ RF FILTER LOW PASS 288MHZ INLINE Mini-Circuits Datasheet	9 In Stock	1 : $63.18 10 : $623.50 Tray	ZX75LP	Tray	Active	Inline, SMA Connection, F and M	Low Pass	0.740" L x 0.750" W (18.80mm x 19.05mm)	Free Hanging (In-Line)	288MHz (Cutoff)	2dB	264MHz	-	0.490" (12.45mm)
ZX75LP-105-S+ RF FILTER LOW PASS 4MHZ INLINE Mini-Circuits Datasheet	8 In Stock	1 : $63.18 10 : $623.50 Tray	ZX75LP	Tray	Active	Inline, SMA Connection, F and M	Low Pass	0.740" L x 0.750" W (18.80mm x 19.05mm)	Free Hanging (In-Line)	4MHz	2dB	105MHz	-	0.490" (12.45mm)
ZX75BS-125-S+ RF FILTER BANDSTOP 125MHZ INLINE Mini-Circuits Datasheet	9 In Stock	1 : $92.08 Tray	ZX75BS	Tray	Active	Inline, SMA Connection, F and M	Band Stop	0.740" L x 0.750" W (18.80mm x 19.05mm)	Free Hanging (In-Line)	125MHz Center	1.5dB	29.5MHz	-	0.490" (12.45mm)
ZX75HP-147-S+ RF FILTER HIPASS 1.625GHZ INLINE Mini-Circuits Datasheet	10 In Stock	1 : $69.79 Tray	ZX75HP	Tray	Active	Inline, SMA Connection, F and M	High Pass	0.740" L x 0.750" W (18.80mm x 19.05mm)	Free Hanging (In-Line)	1.625GHz Center	1.5dB	2.75GHz	-	0.490" (12.45mm)
CBP-1280F+ RF FILTER BANDPASS 1.28GHZ 17SMD Mini-Circuits Datasheet	20 In Stock	1 : $72.20 10 : $698.00 25 : $1,684.75 50 : $3,249.00 100 : $5,958.00 Strip	CBP-1280F	Strip	Active	17-SMD Module	Band Pass	1.050" L x 0.875" W (26.67mm x 22.23mm)	Surface Mount	1.28GHz Center	2dB	240MHz	-	0.254" (6.45mm)
ZX75-12M-S+ RF FILTER BAND PASS 12MHZ INLINE Mini-Circuits Datasheet	7 In Stock	1 : $65.11 Tray	ZX75	Tray	Active	Inline, SMA Connection, F and M	Band Pass	1.200" L x 0.750" W (30.48mm x 19.05mm)	Free Hanging (In-Line)	12MHz Center	3.5dB	6MHz	-	0.490" (12.45mm)
ZX75HP-73-S+ RF FILT HIGH PASS 1.07GHZ INLINE Mini-Circuits Datasheet	10 In Stock	1 : $69.79 Tray	ZX75HP	Tray	Active	Inline, SMA Connection, F and M	High Pass	0.740" L x 0.750" W (18.80mm x 19.05mm)	Free Hanging (In-Line)	1.07GHz Center	1.2dB	1.86GHz	-	0.490" (12.45mm)
