RF Filters

Product Status

Active

Obsolete

Discontinued

Last Time Buy

Not For New Designs

Filter Type

Balance

Band Pass

Band Stop

High Pass

Low Pass

Mounting Type

Chassis Mount

Free Hanging (In-Line)

Surface Mount

Surface Mount, MLCC

Through Hole

Mfr Part #	Quantity	Price	Series	Package	Product Status	Package / Case	Filter Type	Size / Dimension	Mounting Type	Frequency	Insertion Loss	Bandwidth	Ripple	Height (Max)
HFCN-2502+ RF FILTER HIGH PASS 41MHZ 1206 Mini-Circuits Datasheet	0 In Stock	3,000 : $21,330.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	1206 (3216 Metric), 3 PC Pad	High Pass	0.126" L x 0.063" W (3.20mm x 1.60mm)	Surface Mount	41MHz Center	3.6dB	32MHz	-	0.043" (1.10mm)

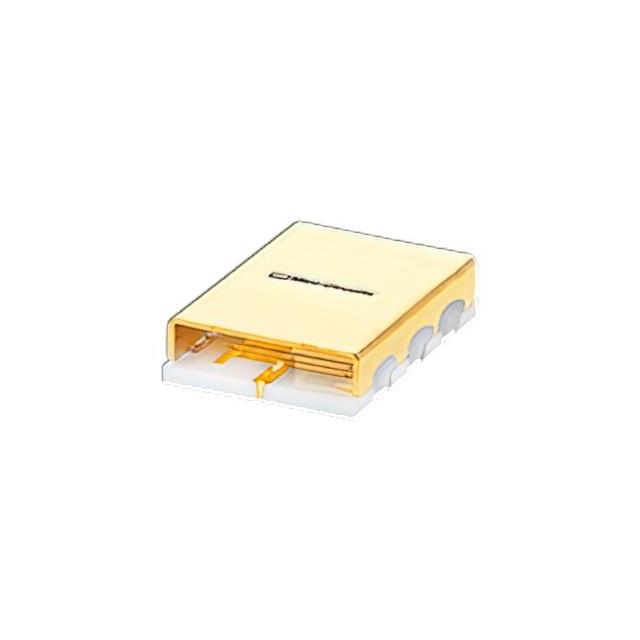

BPF-B140N+ RF FILTER BAND PASS 140MHZ 6SMD Mini-Circuits Datasheet	0 In Stock	500 : $9,930.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	6-SMD, No Lead	Band Pass	0.826" L x 0.472" W (20.98mm x 11.99mm)	Surface Mount	140MHz Center	-	8MHz	-	0.220" (5.59mm)

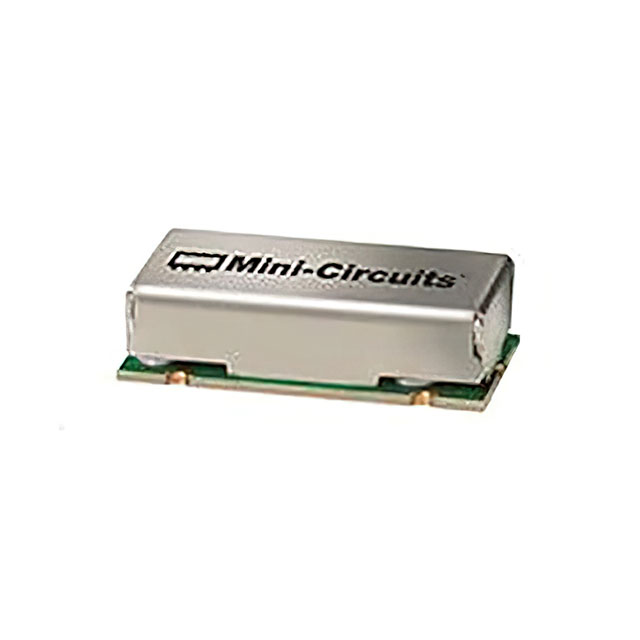

SCLF-135+ RF FILTER LOW PASS 155MHZ 8SMD Mini-Circuits Datasheet	0 In Stock	500 : $6,215.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	8-SMD, Flat Leads	Low Pass	0.750" L x 0.380" W (19.05mm x 9.65mm)	Surface Mount	155MHz (Cutoff)	1dB	-	-	0.280" (7.11mm)

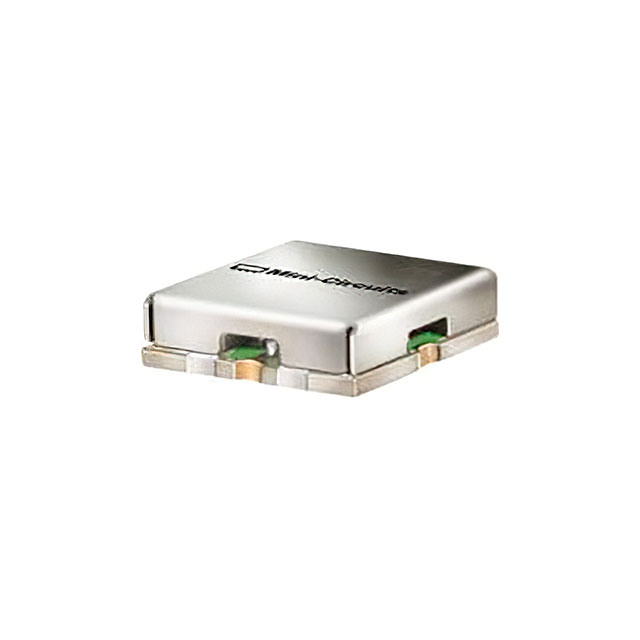

RBP-135+ RF FILTER BAND PASS 135MHZ 8SMD Mini-Circuits Datasheet	0 In Stock	200 : $3,596.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	8-SMD, No Lead	Band Pass	0.350" L x 0.350" W (8.89mm x 8.89mm)	Surface Mount	135MHz Center	-	30MHz	-	0.100" (2.54mm)

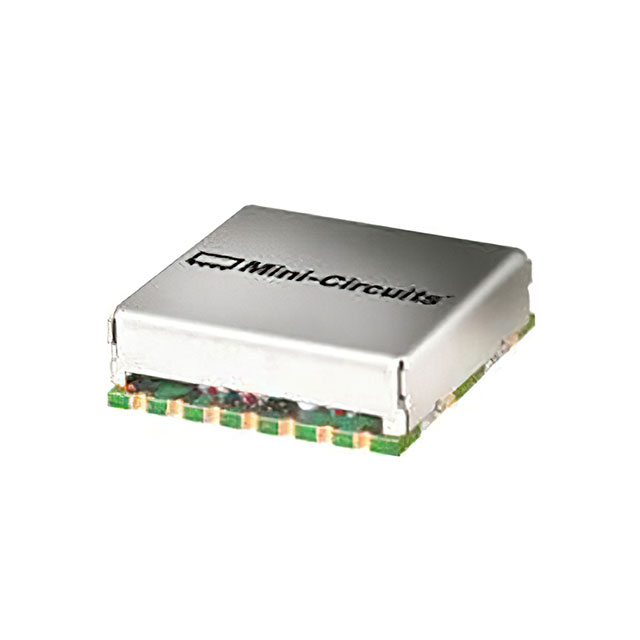

BPF-C550+ RF FILTER BAND PASS 550MHZ 14SMD Mini-Circuits Datasheet	0 In Stock	100 : $4,794.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	14-SMD Module	Band Pass	0.870" L x 0.800" W (22.10mm x 20.32mm)	Surface Mount	550MHz Center	2.2dB	900MHz	-	0.250" (6.35mm)
SCLF-44+ RF FILTER LOW PASS 48.5MHZ 8SMD Mini-Circuits Datasheet	0 In Stock	200 : $2,488.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	8-SMD, Flat Leads	Low Pass	0.750" L x 0.380" W (19.05mm x 9.65mm)	Surface Mount	48.5MHz (Cutoff)	1dB	-	-	0.280" (7.11mm)
SYBP-1275+ LUMPED LC BPF, 1100 - 1450 MHZ Mini-Circuits Datasheet	0 In Stock	100 : $1,367.00 Tape & Reel (TR)	SYBP	Tape & Reel (TR)	Active	6-SMD, No Lead	Band Pass	0.310" L x 0.250" W (7.87mm x 6.35mm)	Surface Mount	1.275GHz Center	2.5dB	350MHz	-	0.150" (3.81mm)
ABF-7G+ RF FILTER BAND PASS 7GHZ 3SMD Mini-Circuits Datasheet	0 In Stock	500 : $51,840.00 Tape & Reel (TR)	ABF-7G+	Tape & Reel (TR)	Active	3-SMD Module	Band Pass	0.320" L x 0.220" W (8.13mm x 5.59mm)	Surface Mount	7GHz Center	2.5dB	1GHz	-	0.090" (2.29mm)
BPF-C73+ RF FILTER BAND PASS 73MHZ 14SMD Mini-Circuits Datasheet	0 In Stock	200 : $8,712.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	14-SMD Module	Band Pass	0.870" L x 0.800" W (22.10mm x 20.32mm)	Surface Mount	73MHz Center	-	22MHz	-	0.250" (6.35mm)
RHP-139+ RF FILT HIGH PASS 1.6125GHZ 8SMD Mini-Circuits Datasheet	0 In Stock	200 : $3,030.00 Tape & Reel (TR)		Tape & Reel (TR)	Active	8-SMD, No Lead	High Pass	0.350" L x 0.350" W (8.89mm x 8.89mm)	Surface Mount	1.6125GHz Center	-	2.775GHz	-	0.100" (2.54mm)
