Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Mounting Type	Coil Voltage	Operating Temperature	Termination Style	Coil Current	Contact Material	Contact Form	Contact Rating (Current)	Switching Voltage	Must Release Voltage	Must Operate Voltage	Operate Time	Release Time	Coil Power	Coil Resistance
2500980000 SAFETY RELAY, MAX. SWITCHING CUR Weidmuller Datasheet	5 In Stock	1 : $184.58 Box	SCS	Box	Active	Diode, Lighted Indicator	DIN Rail	24VDC	-25°C ~ 50°C	Screw Terminal	-	Silver Nickel (AgNi)	3PST-NO (3 Form A)	5 A	250VAC, 30VDC - Max	-	-	25 ms	30 ms	-	-
1304040000 SCS 24VDC P1SIL3DS MG3 Weidmuller Datasheet	15 In Stock	1 : $155.61 10 : $1,497.60 25 : $3,656.25 50 : $7,240.00 Bulk	SCS	Bulk	Active	Diode, Lighted Indicator, Reverse Coil Polarity	DIN Rail	24VDC	-25°C ~ 50°C	Screw Terminal	-	Silver Nickel (AgNi), Gold (Au)	SPST-NO (1 Form A)	5 A	250VAC, 30VDC - Max	-	-	7 ms	14 ms	-	-
1303890000 SCS 24VDC P1SIL3DS Weidmuller Datasheet	5 In Stock	1 : $99.29 10 : $957.50 25 : $2,305.00 50 : $4,539.00 100 : $8,865.00 Bulk	SCS	Bulk	Active	Diode, Lighted Indicator	DIN Rail	24VDC	-25°C ~ 50°C	Screw Terminal	-	Silver Nickel (AgNi), Gold (Au)	3PST-NO (3 Form A)	8 A	250VAC, 30VDC - Max	-	-	7 ms	14 ms	-	-
1218390000 RCIKITZ 24VDC 2CO LED FG Weidmuller Datasheet	22 In Stock	1 : $47.10 10 : $447.40 30 : $1,271.70 50 : $2,001.50 100 : $3,768.00 250 : $8,830.00 Bulk		Bulk	Active	Diode, Lighted Indicator	DIN Rail	24VDC	-40°C ~ 70°C	Spring Terminal	-	Silver Nickel (AgNi), Gold (Au)	DPDT (2 Form C)	6 A	250VAC, 250VDC - Max	2.4 VDC	18 VDC	12 ms	6 ms	-	-
1319270000 SCS 24VDC P2SIL3DSES Weidmuller Datasheet	6 In Stock	1 : $168.98 10 : $1,590.40 25 : $3,727.50 50 : $6,958.00 Bulk	SCS	Bulk	Active	Lighted Indicator	DIN Rail	24VDC	-25°C ~ 50°C	Screw Terminal	-	Silver Nickel (AgNi), Gold (Au)	4PST-NO (4 Form A)	8 A	250VAC - Max	12.5 VDC	17 VDC	5.5 ms	4 ms	-	-

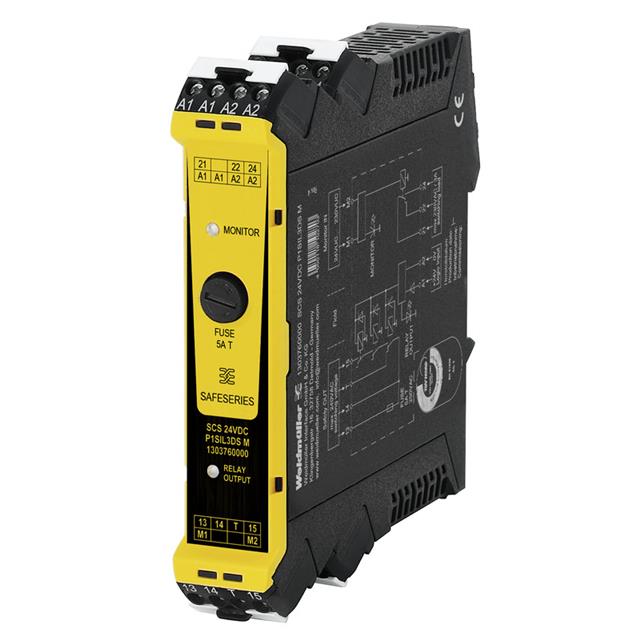

1303760000 SCS 24VDC P1SIL3DS M Weidmuller Datasheet	1 In Stock	1 : $138.68 10 : $1,337.30 25 : $3,219.50 50 : $6,340.00 Bulk	SCS	Bulk	Active	Diode, Lighted Indicator, Reverse Coil Polarity	DIN Rail	24VDC	-25°C ~ 50°C	Screw Terminal	-	Silver Nickel (AgNi), Gold (Au)	SPST-NO (1 Form A)	5 A	250VAC, 30VDC - Max	-	-	7 ms	14 ms	-	-
1319280000 SCS 24VDC P2SIL3ES Weidmuller Datasheet	1 In Stock	1 : $162.99 10 : $1,528.00 25 : $3,565.50 50 : $6,876.00 Bulk	SCS	Bulk	Active	Diode	DIN Rail	24VDC	-25°C ~ 55°C	Screw Terminal	-	Silver Tin Oxide (AgSnO)	6PST-4NO/2NC (4 Form A, 2 Form B)	6 A	250VAC - Max	-	-	55 ms	20 ms	-	-
0340460000 CONN TERM BLK FEED THRU 14-24AWG Weidmuller Datasheet	6,034 In Stock	1 : $2.82 10 : $21.50 25 : $50.25 50 : $89.50 100 : $175.00 300 : $513.00 Bulk	SAK	Bulk	Active	-	-	-	-	Screw	-	-	-	-	-	-	-	-	-	-	-
1696630000 TERM BLOCK PLUG 5POS STR 5MM Weidmuller Datasheet	0 In Stock	Obsolete	Omnimate BL	Bulk	Obsolete	Retention Latches (Non-Wire Side)	Free Hanging (In-Line)	-	-	Screwless - Spring Cage, Tension Clamp	-	Copper Alloy	-	-	-	-	-	-	-	-	-
1718850000 CABLE GLAND 9-19MM PG21 BRASS Weidmuller Datasheet	0 In Stock	50 : $797.50 Bulk	VG	Bulk	Active	-	-	-	-20°C ~ 80°C	-	-	-	-	-	-	-	-	-	-	-	-
