Mfr Part #	Quantity	Price	Series	Package	Product Status	Features	Mounting Type	Coil Voltage	Operating Temperature	Termination Style	Coil Current	Contact Material	Contact Form	Contact Rating (Current)	Switching Voltage	Must Release Voltage	Must Operate Voltage	Operate Time	Release Time	Coil Power	Coil Resistance
85102031 RELAY SAFETY 3PST 5A 24V Crouzet Datasheet	0 In Stock	Obsolete	KNA3-YS	Bulk	Obsolete	Lighted Indicator	DIN Rail	24VDC	-15°C ~ 55°C	Screw Terminal	-	-	3PST-NO (3 Form A)	5 A	250VAC - Max	-	-	70 ms	40 ms	-	-

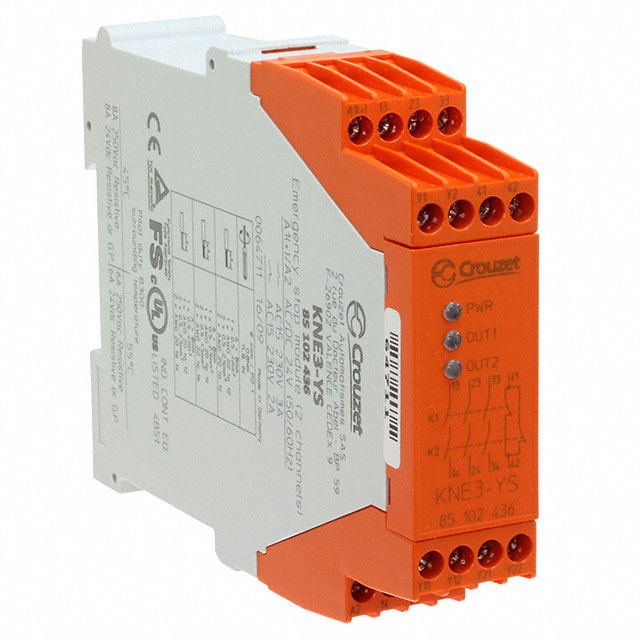

85102436 RELAY SAFETY 3PST 8A 24V Crouzet Datasheet	0 In Stock	Obsolete	KNE3-YS	Bulk	Obsolete	Lighted Indicator	DIN Rail	24VAC/DC	-15°C ~ 55°C	Screw Terminal	-	-	3PST-NO (3 Form A)	8 A	250VAC - Max	-	-	150 ms	30 ms	-	-
85102526 RELAY SAFETY DPST 5A 24V Crouzet Datasheet	0 In Stock	Active	KZHNV-YS	Bulk	Active	Lighted Indicator	DIN Rail	24VAC/DC	-15°C ~ 55°C	Screw Terminal	-	-	DPST-NO (2 Form A)	5 A	160VAC - Max	-	-	50 ms	40 ms	-	-
85100626 RELAY SAFETY DPST 6A 24V Crouzet Datasheet	0 In Stock	Obsolete	KZH2-XS	Bulk	Obsolete	Lighted Indicator	DIN Rail	24VAC/DC	0°C ~ 50°C	Screw Terminal	-	Silver Tin Oxide (AgSnO)	DPST-NO (2 Form A)	6 A	440VAC - Max	-	-	20 ms	500 ms	-	-
85103035 RELAY SAFETY 3PST 5A 230V Crouzet Datasheet	0 In Stock	Obsolete	KNAC3-YS	Bulk	Obsolete	Lighted Indicator	DIN Rail	230VAC	-15°C ~ 55°C	Spring Terminal	-	-	3PST-NO (3 Form A)	5 A	250VAC - Max	-	-	35 ms	200 ms	-	-
85100634 RELAY SAFETY 3PST 6A 115V Crouzet Datasheet	0 In Stock	Obsolete	KZH3-RS	Bulk	Obsolete	Lighted Indicator	DIN Rail	115VAC	0°C ~ 50°C	Screw Terminal	-	Silver Tin Oxide (AgSnO)	3PST-NO (3 Form A)	6 A	440VAC - Max	-	-	20 ms	500 ms	-	-
85102956 RELAY SAFETY 5PST 5A 24V Crouzet Datasheet	0 In Stock	Obsolete	KZE5-YS	Bulk	Obsolete	Lighted Indicator	DIN Rail	24VAC/DC	-15°C ~ 55°C	Screw Terminal	-	-	5PST-NO (5 Form A)	5 A	250VAC - Max	-	-	35 ms	20 ms	-	-
85102632 RELAY SAFETY 3PST 5A 24V Crouzet Datasheet	0 In Stock	Obsolete	KZH3-YS	Bulk	Obsolete	Lighted Indicator	DIN Rail	24VAC	-15°C ~ 55°C	Screw Terminal	-	-	3PST-NO (3 Form A)	5 A	250VAC - Max	-	-	25 ms	30 ms	-	-
85102035 RELAY SAFETY 3PST 5A 230V Crouzet Datasheet	0 In Stock	Obsolete	KNA3-YS	Bulk	Obsolete	Lighted Indicator	DIN Rail	230VAC	-15°C ~ 55°C	Screw Terminal	-	-	3PST-NO (3 Form A)	5 A	250VAC - Max	-	-	35 ms	200 ms	-	-
85100636 RELAY SAFETY 3PST 6A 24V Crouzet Datasheet	0 In Stock	Obsolete	KZH3-RS	Bulk	Obsolete	Lighted Indicator	DIN Rail	24VAC/DC	0°C ~ 50°C	Screw Terminal	-	Silver Tin Oxide (AgSnO)	3PST-NO (3 Form A)	6 A	440VAC - Max	-	-	20 ms	500 ms	-	-
