Turret Connectors

Mfr Part #	Quantity	Price	Series	Package	Product Status	Contact Finish	Mounting Type	Insulation	Board Thickness	Terminal Type	Flange Diameter	Length - Overall	Termination	Length - Above Board	Mounting Hole Diameter	Contact Finish Thickness	Material - Insulation	Contact Material	Diameter - Turret Head	Insulation Color	Number of Turrets	Length - Below Flange	Staking Side OD	Staking Side ID
1096-3-05-15-00-00-01-0 TERM TURRET PIN L=3.33MM GOLD Mill-Max Datasheet	808 In Stock	1 : $1.19 10 : $10.00 100 : $90.00 1,000 : $660.00 5,000 : $2,850.00 10,000 : $5,400.00 Bulk	1096	Bulk	Active	Gold	Through Hole	Non-Insulated	-	Double End, Pin	0.072" (1.83mm)	0.793" (20.14mm)	Press-Fit, Barbed, Wire Wrap	0.131" (3.33mm)	0.057" (1.45mm)	10.0µin (0.25µm)	-	Brass Alloy	0.058" (1.47mm)	-	Single	0.662" (16.81mm)	-	-
2703-2-00-01-00-00-07-0 TERM TURRET SINGLE L=8.33MM Mill-Max Datasheet	999 In Stock	1 : $1.03 10 : $8.70 100 : $78.00 1,000 : $570.00 5,000 : $2,500.00 10,000 : $4,700.00 Bulk	2703	Bulk	Active	Tin-Lead	Through Hole	Non-Insulated	0.062" (1.57mm)	Single End	0.156" (3.96mm)	0.435" (11.05mm)	Swage	0.328" (8.33mm)	0.094" (2.39mm)	200.0µin (5.08µm)	-	Brass Alloy	0.120" (3.05mm)	-	Single	0.107" (2.72mm)	0.091" (2.31mm)	0.064" (1.63mm)

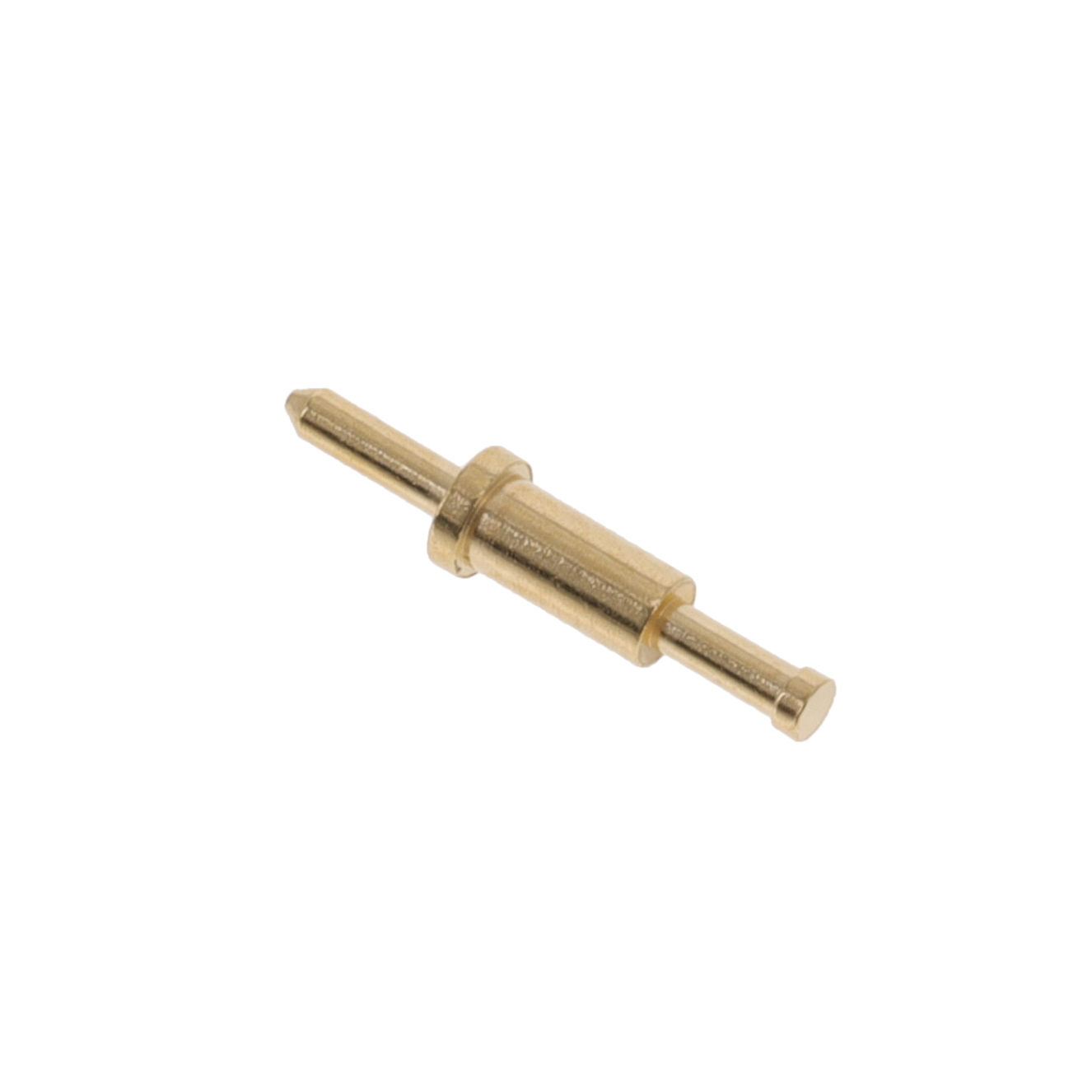

3156-4-00-15-00-00-08-0 CIRCUIT PIN PRNTD .150" .082" Mill-Max Datasheet	999 In Stock	1 : $1.09 10 : $9.20 100 : $83.00 1,000 : $600.00 5,000 : $2,650.00 10,000 : $5,000.00 Bulk	3156	Bulk	Active	Gold	Through Hole	Non-Insulated	0.125" (3.18mm)	Double End, Pin	0.093" (2.36mm)	0.442" (11.23mm)	Swage	0.150" (3.81mm)	0.076" (1.93mm)	10.0µin (0.25µm)	-	Brass Alloy	0.050" (1.27mm)	-	Single	0.270" (6.86mm)	-	-
1093-0-05-21-00-00-01-0 TERM TURRET PIN L=3.05MM GOLD Mill-Max Datasheet	299 In Stock	1 : $1.36 10 : $11.50 100 : $104.00 1,000 : $750.00 5,000 : $3,300.00 10,000 : $6,300.00 Bulk	1093	Bulk	Active	Gold	Through Hole	Non-Insulated	-	Double End, Pin	0.063" (1.60mm)	0.670" (17.02mm)	Press-Fit, Knurled, Wire Wrap	0.120" (3.05mm)	0.056" (1.42mm)	20.0µin (0.51µm)	-	Brass Alloy	0.053" (1.35mm)	-	Single	0.550" (13.97mm)	-	-
2703-2-00-44-00-00-07-0 TERM TURRET SINGLE L=8.33MM Mill-Max Datasheet	999 In Stock	1 : $1.27 10 : $10.80 100 : $97.00 1,000 : $700.00 5,000 : $3,050.00 10,000 : $5,800.00 Bulk	2703	Bulk	Active	Silver	Through Hole	Non-Insulated	0.062" (1.57mm)	Single End	0.156" (3.96mm)	0.435" (11.05mm)	Swage	0.328" (8.33mm)	0.094" (2.39mm)	300.0µin (7.62µm)	-	Brass Alloy	0.120" (3.05mm)	-	Single	0.107" (2.72mm)	0.091" (2.31mm)	0.064" (1.63mm)
2805-3-00-44-00-00-07-0 TERM TURRET SINGLE L=5.94MM Mill-Max Datasheet	999 In Stock	1 : $1.44 10 : $12.10 100 : $109.00 1,000 : $790.00 5,000 : $3,450.00 10,000 : $6,600.00 Bulk	2805	Bulk	Active	Silver	Through Hole	Non-Insulated	0.094" (2.39mm)	Single End	0.187" (4.75mm)	0.369" (9.37mm)	Swage	0.234" (5.94mm)	0.116" (2.95mm)	300.0µin (7.62µm)	-	Brass Alloy	0.145" (3.68mm)	-	Single	0.135" (3.43mm)	0.112" (2.84mm)	0.078" (1.98mm)
2805-4-00-01-00-00-07-0 TERM TURRET SINGLE L=5.94MM Mill-Max Datasheet	999 In Stock	1 : $1.19 10 : $10.10 100 : $91.00 1,000 : $660.00 5,000 : $2,900.00 10,000 : $5,500.00 Bulk	2805	Bulk	Active	Tin-Lead	Through Hole	Non-Insulated	0.125" (3.18mm)	Single End	0.187" (4.75mm)	0.399" (10.13mm)	Swage	0.234" (5.94mm)	0.116" (2.95mm)	200.0µin (5.08µm)	-	Brass Alloy	0.145" (3.68mm)	-	Single	0.165" (4.19mm)	0.112" (2.84mm)	0.078" (1.98mm)
3156-2-00-21-00-00-08-0 CIRCUIT PIN PRNTD .050"D .082"L Mill-Max Datasheet	996 In Stock	1 : $1.20 10 : $10.20 100 : $91.00 1,000 : $660.00 5,000 : $2,900.00 10,000 : $5,500.00 Bulk	3156	Bulk	Active	Gold	Through Hole	Non-Insulated	0.062" (1.57mm)	Double End, Pin	0.093" (2.36mm)	0.379" (9.63mm)	Swage	0.150" (3.81mm)	0.076" (1.93mm)	20.0µin (0.51µm)	-	Brass Alloy	0.050" (1.27mm)	-	Single	0.207" (5.26mm)	-	-
2706-2-00-80-00-00-07-0 TERM TURRET PIN Mill-Max Datasheet	999 In Stock	1 : $1.18 10 : $9.90 100 : $89.00 1,000 : $650.00 5,000 : $2,850.00 10,000 : $5,400.00 Bulk	2706	Bulk	Active	Tin	Through Hole	Non-Insulated	0.062" (1.57mm)	Double End, Pin	0.156" (3.96mm)	0.531" (13.50mm)	Swage, Knurled	0.219" (5.56mm)	0.120" (3.05mm)	200.0µin (5.08µm)	-	Brass Alloy	0.093" (2.36mm), 0.094" (2.39mm)	-	Double	0.312" (7.92mm)	-	-
2321-1-00-44-00-00-07-0 TERM TURRET PIN L=6.35MM SILVER Mill-Max Datasheet	6,393 In Stock	1 : $1.09 10 : $9.20 100 : $83.00 1,000 : $600.00 5,000 : $2,650.00 10,000 : $5,000.00 Bulk	2321	Bulk	Active	Silver	Through Hole	Non-Insulated	0.031" (0.79mm)	Double End, Pin	0.094" (2.39mm)	0.426" (10.82mm)	Swage	0.250" (6.35mm)	0.076" (1.93mm)	300.0µin (7.62µm)	-	Brass Alloy	0.051" (1.30mm)	-	Single	0.176" (4.47mm)	-	-
