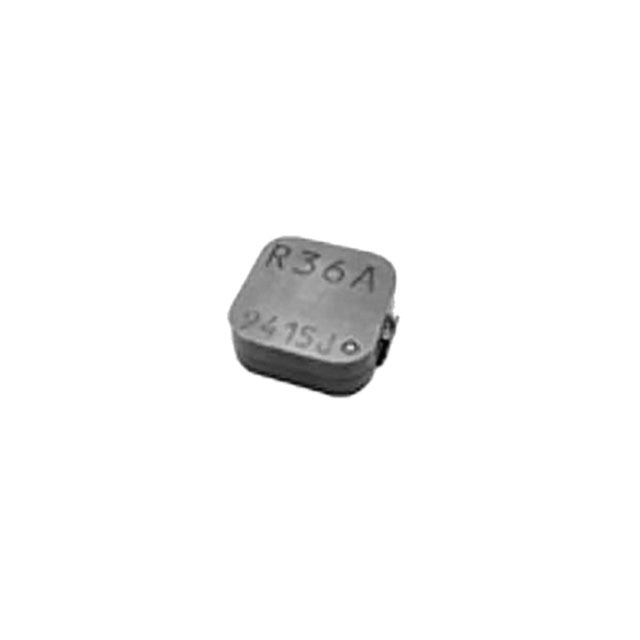

ETQ-P4LR24AFM

ETQ-P4LR24AFM

Part Number	ETQ-P4LR24AFM
Manufacturer	Panasonic Electronic Components
Other Part Numbers	10-ETQ-P4LR24AFMTR-ND 10-ETQ-P4LR24AFMCT-ND 10-ETQ-P4LR24AFMDKR-ND ETQP4LR24AFM 10-ETQ-P4LR24AFMDKR 10-ETQ-P4LR24AFMCT 10-ETQ-P4LR24AFMTR ETQ-P4LR24AFM-ND
Description	FIXED IND 240NH 24A 1 MOHM SMD
Detailed Description	240 nH Shielded Drum Core, Wirewound Inductor 24 A 1mOhm 2-SMD, J-Lead
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Panasonic Electronic Components
Series		PCC-M0740L (MC)
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±20%
Package / Case		2-SMD, J-Lead
Size / Dimension		0.343" L x 0.276" W (8.70mm x 7.00mm)
Mounting Type		Surface Mount
Shielding		Shielded
Type		Drum Core, Wirewound
DC Resistance (DCR)		1mOhm
Material - Core		Metal Composite
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.157" (4.00mm)
Inductance		240 nH
Current Rating (Amps)		24 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Design chg 12/NOV/2019

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 6140

Can ship immediately.
