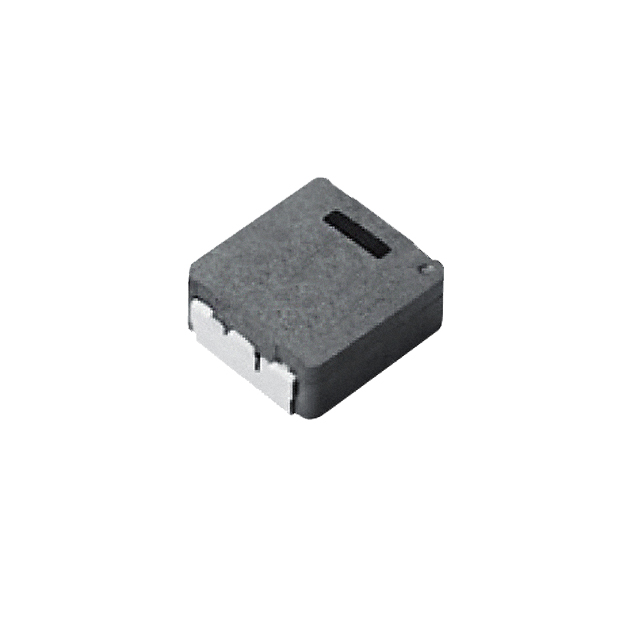

ETQ-P6M3R3YLC

Part Number
ETQ-P6M3R3YLC
Manufacturer Panasonic Electronic Components
Other Part Numbers
P17073TR-ND
P17073CT-ND
P17073DKR-ND
2266-ETQ-P6M3R3YLCTR
P17073TR
ETQP6M3R3YLC
P17073CT
P17073DKR
Description FIXED IND 3.3UH 17A 6.6 MOHM SMD
Detailed Description 3.3 µH Shielded Drum Core, Wirewound Inductor 17 A 6.6mOhm Max 2-SMD, J-Lead
Manufacturer Standard Lead Time 24 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Panasonic Electronic Components
Series
PCC-M1060ML
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±20%
Package / Case 2-SMD, J-Lead
Size / Dimension 0.429" L x 0.394" W (10.90mm x 10.00mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 150°C
DC Resistance (DCR) 6.6mOhm Max
Ratings AEC-Q200
Current - Saturation (Isat) 26A
Material - Core Metal Composite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.236" (6.00mm)
Inductance 3.3 µH
Current Rating (Amps) 17 A

Documents & Media

RESOURCE TYPE LINK
Datasheets ETQ-P6M3R3YLC
Datasheets Mult Devs Marking 29/Dec/2022

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1186

Can ship immediately.
