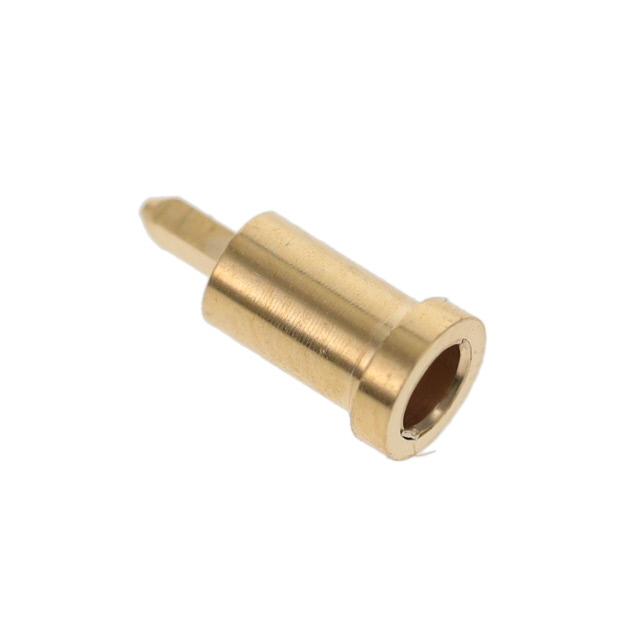

0367-0-15-15-23-27-10-0

0367-0-15-15-23-27-10-0

Part Number	0367-0-15-15-23-27-10-0
Manufacturer	Mill-Max
Other Part Numbers	ED11327-ND 0367-015152327100-ND 0367-015152327100 367015152327100 ED11327 0367015152327100
Description	CONN PIN RCPT .045-.065 PRESSFIT
Detailed Description	Pin Receptacle Connector 0.045" ~ 0.065" (1.14mm ~ 1.65mm) Standard Tail Press-Fit
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminals PC Pin Receptacles, Socket Connectors
Manufacturer		Mill-Max
Series		0367
Packaging		Bulk
Part Status		Active
Contact Finish		Gold
Flange Diameter		0.125" (3.18mm)
Length - Overall		0.285" (7.24mm)
Termination		Press-Fit
Mounting Hole Diameter		0.040" (1.02mm)
Contact Finish Thickness		30.0µin (0.76µm)
Contact Material		Beryllium Copper
Tail Type		Standard Tail
Accepts Pin Diameter		0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Pin Hole Diameter		0.088" (2.24mm)
Tail Diameter		0.032" (0.81mm) Square
Socket Depth		0.140" (3.56mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 24304

Can ship immediately.
