0402DC-39NXJRW

Part Number
0402DC-39NXJRW
Manufacturer COILCRAFT
Other Part Numbers
2457-0402DC-39NXJRW-ND
2457-0402DC-39NXJRWTR-ND
2457-0402DC-39NXJRW
Description 0402DC-39NXJRW

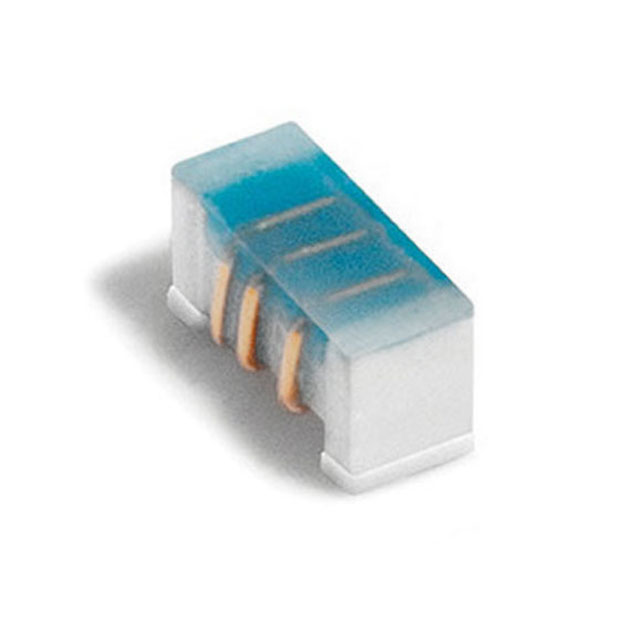

Detailed Description 39 nH Unshielded Wirewound Inductor 670 mA 375mOhm Max 0402 (1005 Metric)
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
0402DC
Packaging
Strip
Part Status Active
Tolerance ±5%
Package / Case 0402 (1005 Metric)
Size / Dimension 0.044" L x 0.026" W (1.11mm x 0.66mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 375mOhm Max
Q @ Freq 60 @ 900MHz
Frequency - Self Resonant 3.86GHz
Ratings AEC-Q200
Material - Core Ceramic
Inductance Frequency - Test 250 MHz
Supplier Device Package 0402
Height - Seated (Max) 0.026" (0.65mm)
Inductance 39 nH
Current Rating (Amps) 670 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets 0402DC-39NXJRW

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
