0402DC-9N5XGRW

0402DC-9N5XGRW

Part Number
0402DC-9N5XGRW
Manufacturer COILCRAFT
Other Part Numbers
2457-0402DC-9N5XGRW-ND
2457-0402DC-9N5XGRWTR-ND
2457-0402DC-9N5XGRW
Description FIXED IND 9.5NH 1.4A 73MOHM SMD

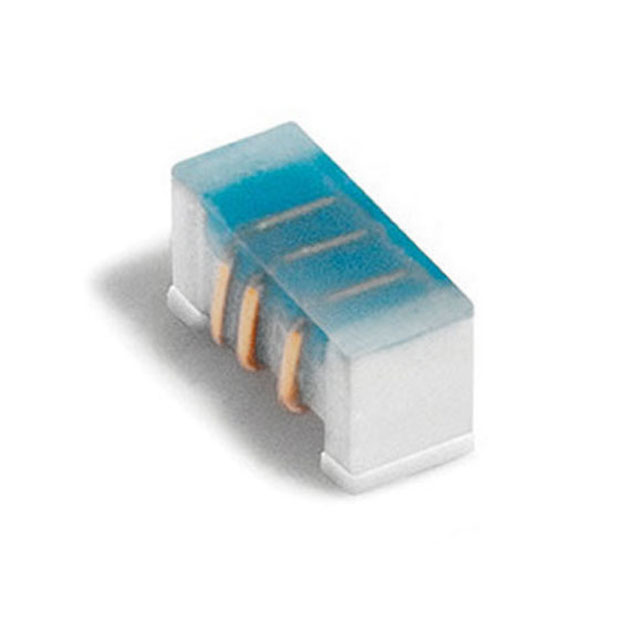

Detailed Description 9.5 nH Unshielded Wirewound Inductor 1.4 A 73mOhm Max 0402 (1005 Metric)
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
0402DC
Packaging
Strip
Part Status Active
Tolerance ±2%
Package / Case 0402 (1005 Metric)
Size / Dimension 0.044" L x 0.026" W (1.11mm x 0.66mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 73mOhm Max
Q @ Freq 73 @ 900MHz
Frequency - Self Resonant 8GHz
Ratings AEC-Q200
Material - Core Ceramic
Inductance Frequency - Test 250 MHz
Supplier Device Package 0402
Height - Seated (Max) 0.026" (0.65mm)
Inductance 9.5 nH
Current Rating (Amps) 1.4 A

Documents & Media

RESOURCE TYPE LINK
Datasheets 0402DC-9N5XGRW

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
Strip 1 $1.40 $1.40
Total Amount: $1.40

Strip

QUANTITY UNIT PRICE EXT PRICE
1 $1.40 $1.40
200 $1.00 $200.00
500 $0.68 $340.00
