Category | ||
---|---|---|
Manufacturer | HARTING | |
Series |

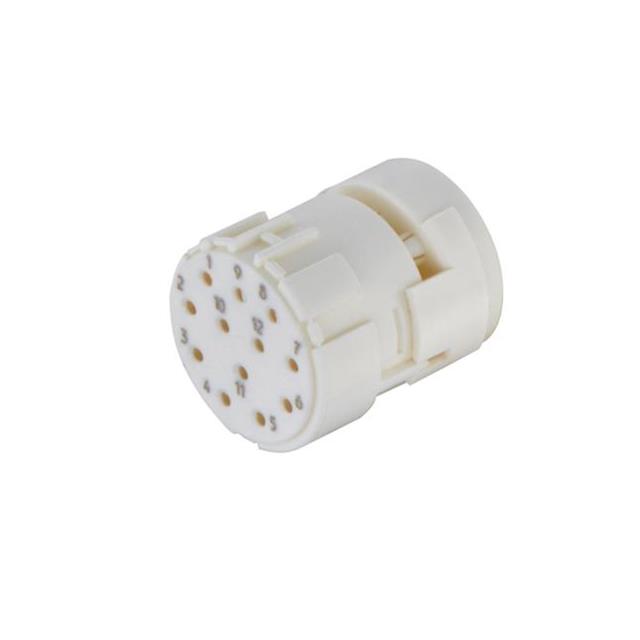

Han® M23
|
|
Packaging |
Bulk
|
|
Part Status | Active | |
Connector Type | Insert | |
Shielding | Unshielded | |
Number of Positions | 12 | |
Type | For Female Sockets | |
Shell Size - Insert | M23-12 | |
Operating Temperature | -40°C ~ 125°C | |
Contact Type | Crimp | |
Contact Size | 1.0mm | |
Note | Contacts Not Included; Insert Only, Requires Shell | |
Contact Shape | Circular | |
Insert Material | Polyamide (PA), Nylon |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 09151123101 | |
Datasheets | 09151123101 | |
Datasheets | 09151123101 Drawing |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8538.90.8180 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
