09628102305

Part Number
09628102305
Manufacturer HARTING
Other Part Numbers
1195-09628102305-ND
1195-09628102305
09 62 810 2305

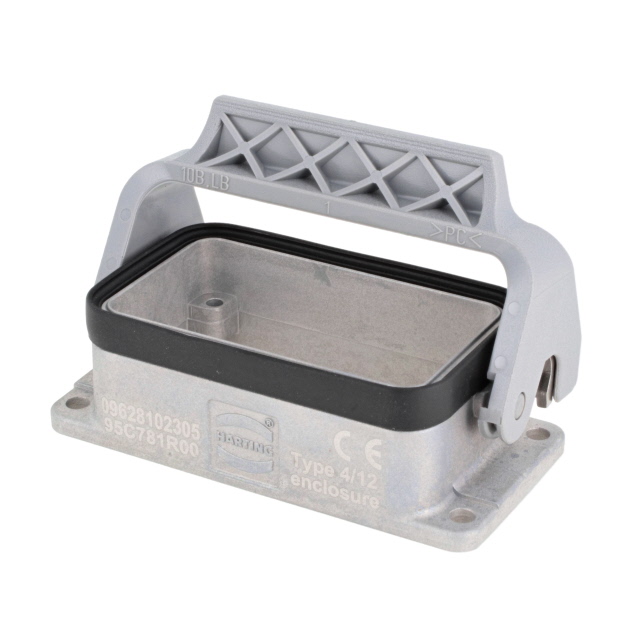

Description 10B EMC BULKHEAD HOUSING, SINGLE
Detailed Description Base - Panel Mount Connector Bottom Entry 10B IP66 - Dust Tight, Water Resistant
Manufacturer Standard Lead Time 11 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer HARTING
Series
Han®
Packaging
Bulk
Part Status Active
Connector Type Base - Panel Mount
Size / Dimension 3.661" L x 1.732" W x 1.177" H (93.00mm x 44.00mm x 29.90mm)
Style Bottom Entry
Operating Temperature -40°C ~ 125°C
Size 10B
Ingress Protection IP66 - Dust Tight, Water Resistant
Lock Location Locking Clip (1) on Base Bottom
Housing Material Aluminum, Die Cast

Documents & Media

RESOURCE TYPE LINK
Datasheets 09628102305

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8538.90.8180
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1

Can ship immediately.
