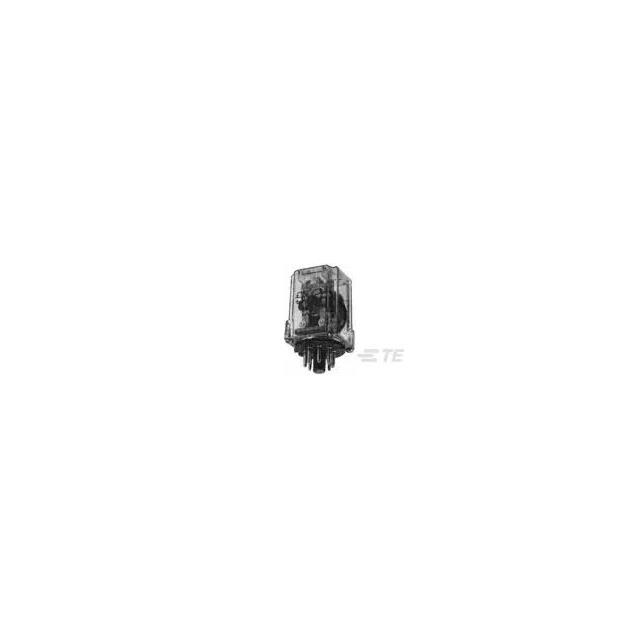

1-1393102-9

1-1393102-9

Part Number	1-1393102-9
Manufacturer	TE Connectivity Potter & Brumfield Relays
Other Part Numbers	2266-1-1393102-9-ND 2266-1-1393102-9
Description	RELAY GEN PURPOSE SPDT 10A 24V
Detailed Description	General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
Datasheet	Datasheet

Product Attributes

Category		Relays Power Relays, Over 2 Amps
Manufacturer		TE Connectivity Potter & Brumfield Relays
Series		KRP
Packaging		Box
Part Status		Active
Mounting Type		Socketable
Coil Voltage		24VDC
Operating Temperature		-45°C ~ 70°C
Termination Style		Plug In, 8 Pin (Octal)
Relay Type		General Purpose
Coil Current		51 mA
Coil Type		Non Latching
Contact Material		Silver Cadmium Oxide (AgCdO)
Contact Form		SPDT (1 Form C)
Contact Rating (Current)		10 A
Switching Voltage		240VAC - Max
Must Operate Voltage		18 VDC
Coil Resistance		472 Ohms
Coil Insulation		Class B

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1-1393102-9

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0050
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
