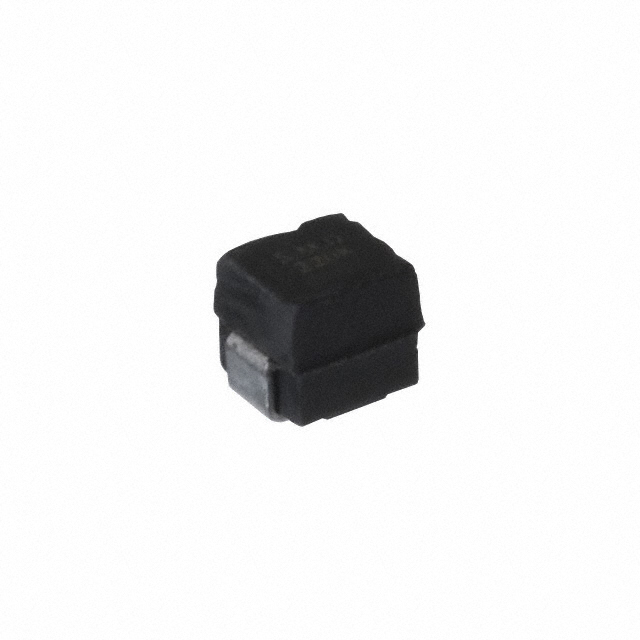

100-822K

100-822K

Part Number	100-822K
Manufacturer	API Delevan
Other Part Numbers	100-822K-ND 100-822K BULK 50
Description	FIXED IND 8.2UH 56MA 5 OHM
Detailed Description	8.2 µH Unshielded Inductor 56 mA 5Ohm Max Nonstandard, 2 Lead
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		API Delevan
Series		100
Packaging		Bulk
Part Status		Active
Tolerance		±10%
Package / Case		Nonstandard, 2 Lead
Size / Dimension		0.100" L x 0.100" W (2.54mm x 2.54mm)
Mounting Type		Free Hanging (In-Line)
Shielding		Unshielded
Operating Temperature		-55°C ~ 105°C
DC Resistance (DCR)		5Ohm Max
Q @ Freq		40 @ 7.9MHz
Frequency - Self Resonant		43MHz
Material - Core		Iron
Inductance Frequency - Test		7.9 MHz
Height - Seated (Max)		0.065" (1.65mm)
Inductance		8.2 µH
Current Rating (Amps)		56 mA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		100-822K

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant
