1043786 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	1043786
Manufacturer	Phoenix Contact
Other Part Numbers	277-1043786-ND FP 0 8/ 12-MV-SH 1 15 277-1043786
Description	FP 0 8/ 12-MV-SH 1 15

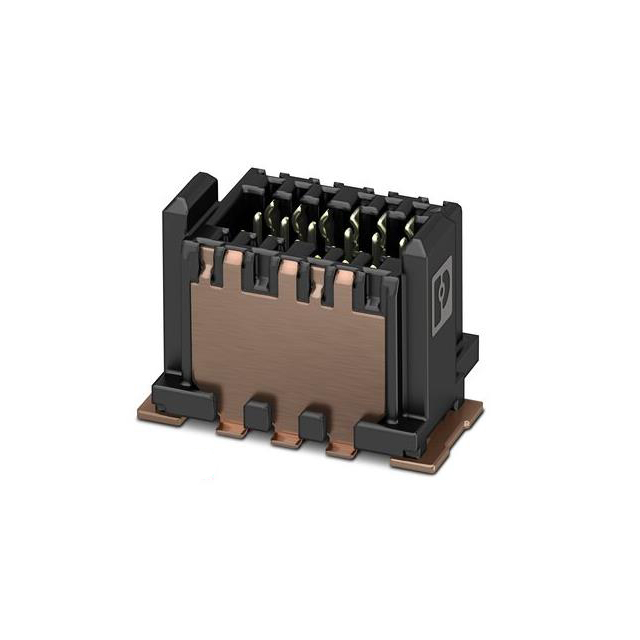

Detailed Description	Connector Header Surface Mount 12 position 0.031" (0.80mm)
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Phoenix Contact
Series		COMBICON FP
Packaging		Bulk
Part Status		Active
Features		Shielded, Solder Retention
Connector Type		Header
Current Rating (Amps)		1.7A
Mounting Type		Surface Mount
Number of Positions		12
Number of Rows		2
Style		Board to Cable/Wire
Operating Temperature		-55°C ~ 125°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.031" (0.80mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Tin
Contact Shape		Rectangular
Insulation Height		0.222" (5.65mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Liquid Crystal Polymer (LCP)

RESOURCE TYPE		LINK
Datasheets		1043786

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
