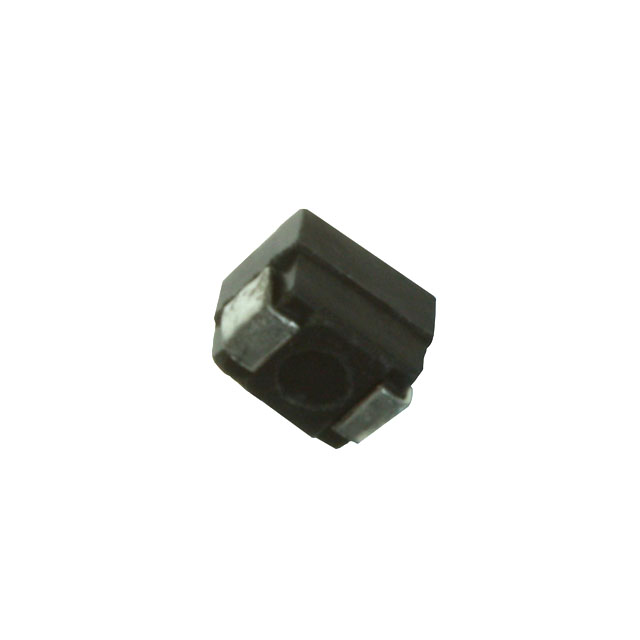

1210-821K

Part Number
1210-821K
Manufacturer API Delevan
Other Part Numbers
DN10821TR-ND
DN10821CT
DN10821TR
1210-821K TR 500
1210-821KB
1210821K
Description FIXED IND 820NH 556MA 670MOHM SM
Detailed Description 820 nH Unshielded Inductor 556 mA 670mOhm Max 1210 (3225 Metric)
Manufacturer Standard Lead Time 7 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer API Delevan
Series
1210
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±10%
Package / Case 1210 (3225 Metric)
Size / Dimension 0.128" L x 0.095" W (3.25mm x 2.42mm)
Mounting Type Surface Mount
Shielding Unshielded
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 670mOhm Max
Q @ Freq 30 @ 25MHz
Frequency - Self Resonant 140MHz
Material - Core Iron
Inductance Frequency - Test 25 MHz
Supplier Device Package 1210
Height - Seated (Max) 0.101" (2.57mm)
Inductance 820 nH
Current Rating (Amps) 556 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets 1210-821K

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant
