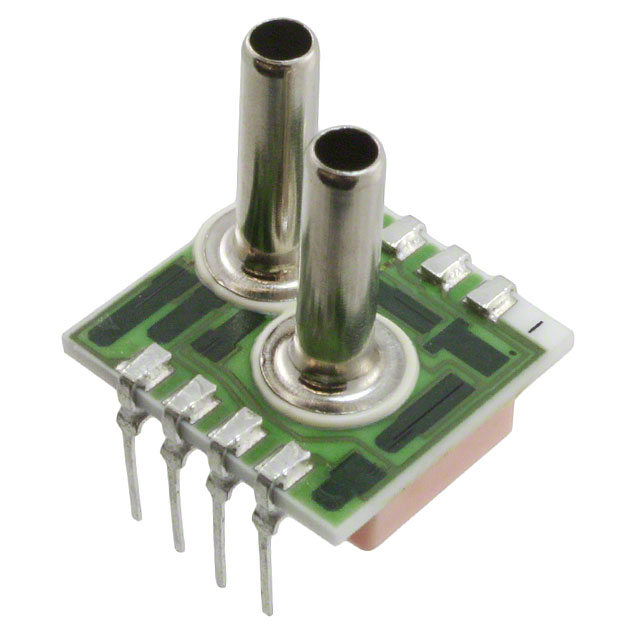

1210A-015G-3S

Part Number
1210A-015G-3S
Manufacturer TE Connectivity Measurement Specialties
Other Part Numbers
223-1334-ND
2266-1210A-015G-3S
223-1334
Description SENSOR 15PSIG 0.13" 0.1V
Detailed Description Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.13" (3.18mm) Tube 0 mV ~ 100 mV 8-DIP Module

Product Attributes

Category
Manufacturer TE Connectivity Measurement Specialties
Series
Packaging
Tray
Part Status Obsolete
Features Temperature Compensated
Package / Case 8-DIP Module
Output Type Wheatstone Bridge
Mounting Type Through Hole
Output 0 mV ~ 100 mV
Operating Pressure 15PSI (103.42kPa)
Pressure Type Vented Gauge
Operating Temperature -40°C ~ 125°C
Termination Style PC Pin
Port Size Male - 0.13" (3.18mm) Tube
Applications Board Mount
Port Style Barbless
Maximum Pressure 45PSI (310.26kPa)

Documents & Media

RESOURCE TYPE LINK
Datasheets 1210A-015G-3S
Datasheets 12y0(y) - End of Life 01/DEC/2020

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 9026.20.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

Obsolete

This product is no longer manufactured.
