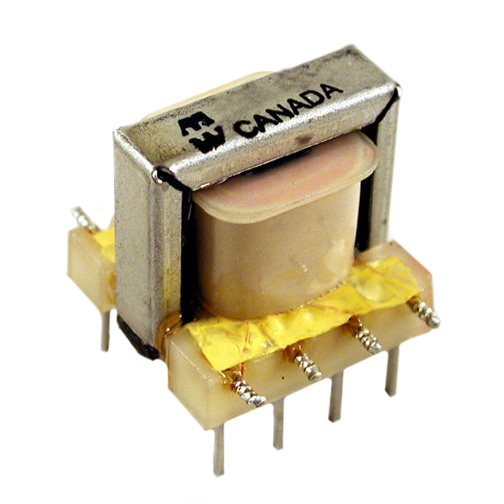

148M

148M

Part Number	148M
Manufacturer	Hammond Manufacturing
Other Part Numbers	HM3281-ND 3937-148M HM3281 148M-ND
Description	AUDIO XFMR 6K / 2K 500/500 TH
Detailed Description	6k Impedance Primary Ohms 2k, 500/500 Impedance Secondary Ohms Audio Transformer 200Hz ~ 15kHz Through Hole
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Audio Transformers
Manufacturer		Hammond Manufacturing
Series		148
Packaging		Bulk
Part Status		Active
Size / Dimension		0.820" L x 0.680" W (20.83mm x 17.27mm)
Mounting Type		Through Hole
Termination Style		PC Pin
Transformer Type		Economical Open Type
Insertion Loss		0.5dB
Frequency Range		200Hz ~ 15kHz
Height - Seated (Max)		0.690" (17.53mm)
Impedance - Primary (Ohms)		6k
Impedance - Secondary (Ohms)		2k, 500/500
DC Resistance (DCR) - Primary		850Ohm
DC Resistance (DCR) - Secondary		230Ohm
Frequency Response		±1dB
Power Level		75mW

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Hammond REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3

Can ship immediately.
