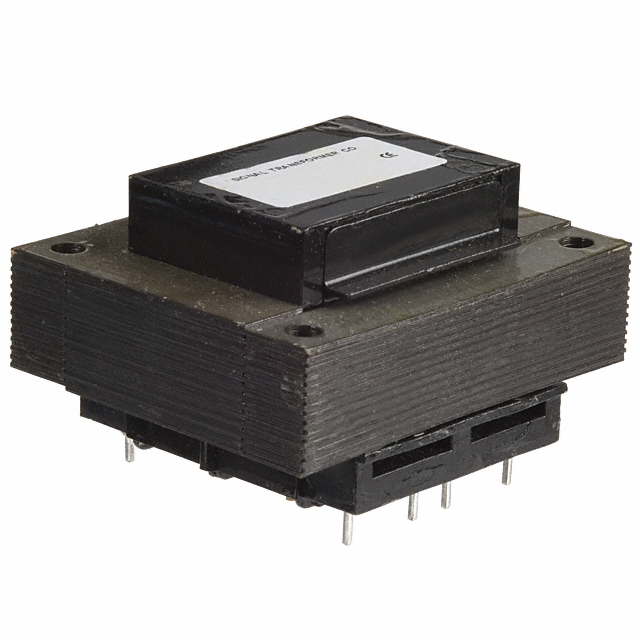

14A-56-20B24

14A-56-20B24

Part Number	14A-56-20B24
Manufacturer	Pulse Larsen Antenna
Other Part Numbers	14A-56-20B24-ND
Description	PWR XFMR LAMINATED 56VA TH
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Pulse Larsen Antenna
Series		International PC Plug-In
Packaging		Bulk
Part Status		Active
Size / Dimension		76.20mm L x 63.50mm W
Mounting Type		Through Hole
Type		Laminated Core
Weight		1.7 lbs (771.1 g)
Termination Style		PC Pin
Primary Winding(s)		Dual
Secondary Winding(s)		Single, Multiple Taps
Power - Max		56VA
Current - Output (Max)		Parallel 5.6A, Series 2.8A
Voltage - Primary		115V, 230V
Height - Seated (Max)		46.02mm
Voltage - Secondary (Full Load)		Parallel 10V, Series 20V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Pulse Larson REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
