1580920000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1580920000
Manufacturer	Weidmuller
Other Part Numbers	1580920000-ND 2266-1113361001 SL5.00/8/90B 3.2 SL 5.00/08/90B 3.2SN OR BX 1580920000-NDR

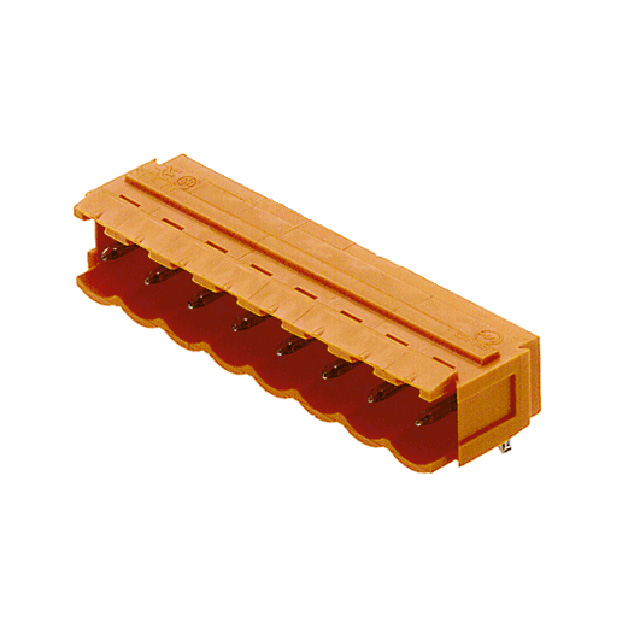

Description	TERM BLOCK HDR 8POS 90DEG 5MM
Detailed Description	8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Manufacturer Standard Lead Time	27 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate SL
Packaging		Bulk
Part Status		Active
Color		Orange
Mounting Type		Through Hole
Number of Positions		8
Pitch		0.197" (5.00mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-50°C ~ 100°C
Termination Style		Solder
Ingress Protection		IP20
Material Flammability Rating		UL94 V-0
Current - IEC		18A
Number of Levels		1
Positions Per Level		8
Contact Material		Copper Alloy
Header Orientation		90°, Right Angle
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Contact Tail Length		0.126" (3.20mm)
Insulation Height		0.330" (8.38mm)
Current - UL		15 A
Voltage - IEC		400 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		1580920000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
