1581790000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1581790000
Manufacturer	Weidmuller
Other Part Numbers	1581790000-ND SL 5.00/03/180B 3.2SN OR BX 2266-1223810000 1581790000-NDR SL5.00/3/180B 3.2

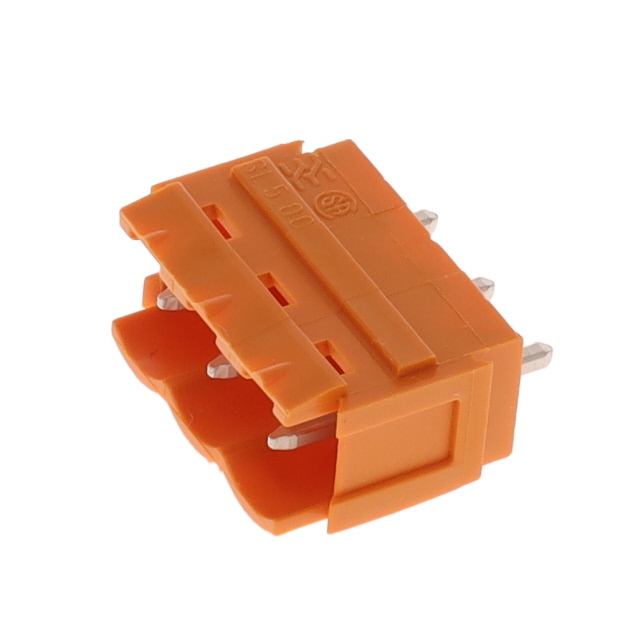

Description	TERM BLOCK HDR 3POS VERT 5MM
Detailed Description	3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole
Manufacturer Standard Lead Time	17 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate SL
Packaging		Bulk
Part Status		Active
Color		Orange
Mounting Type		Through Hole
Number of Positions		3
Pitch		0.197" (5.00mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-50°C ~ 100°C
Termination Style		Solder
Ingress Protection		IP20
Material Flammability Rating		UL94 V-0
Current - IEC		18A
Number of Levels		1
Positions Per Level		3
Contact Material		Copper Alloy
Header Orientation		Vertical
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Contact Tail Length		0.126" (3.20mm)
Insulation Height		0.472" (12.00mm)
Current - UL		15 A
Voltage - IEC		400 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

Can ship immediately.

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Bulk	1	$1.59	$1.59
Total Amount: $1.59
