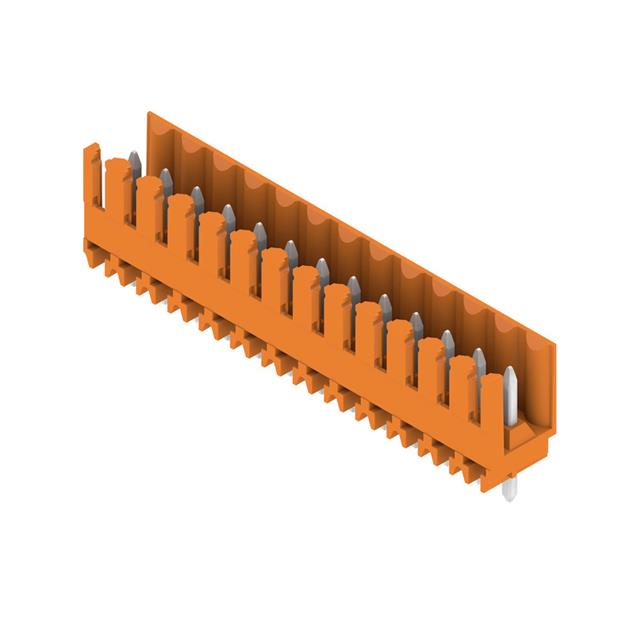

1604880000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1604880000
Manufacturer	Weidmuller
Other Part Numbers	1604880000-ND 1604880000-NDR SL3.5/13/180 3.2 SL 3.50/13/180 3.2SN OR BX 2266-1289540000
Description	TERM BLOCK HDR 13POS VERT 3.5MM
Detailed Description	13 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.138" (3.50mm) Vertical Through Hole
Manufacturer Standard Lead Time	27 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate SL
Packaging		Bulk
Part Status		Active
Color		Orange
Mounting Type		Through Hole
Number of Positions		13
Pitch		0.138" (3.50mm)
Type		Header, Male Pins, Shrouded (2 Side)
Operating Temperature		-50°C ~ 100°C
Termination Style		Solder
Ingress Protection		IP10
Material Flammability Rating		UL94 V-0
Current - IEC		17A
Number of Levels		1
Positions Per Level		13
Contact Material		Copper Alloy
Header Orientation		Vertical
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Contact Tail Length		0.126" (3.20mm)
Insulation Height		0.437" (11.10mm)
Current - UL		10 A
Voltage - IEC		320 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		1604880000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

QUANTITY	UNIT PRICE	EXT PRICE
50	$3.68	$184.00
