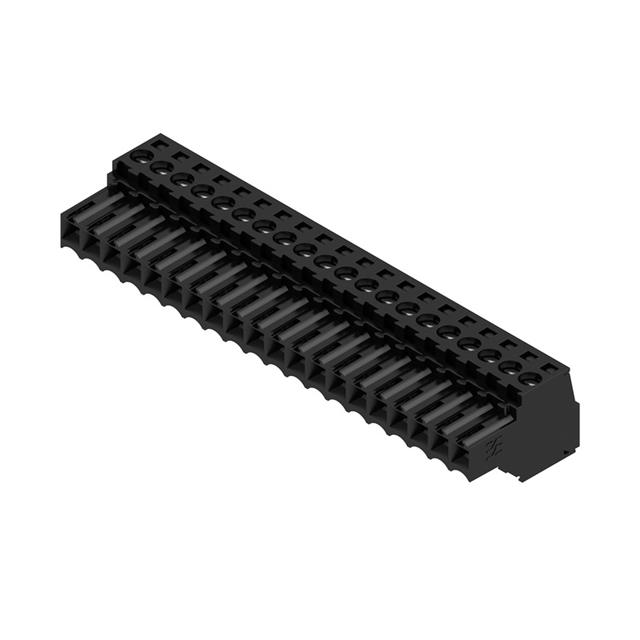

1620400000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1620400000
Manufacturer	Weidmuller
Other Part Numbers	1620400000-ND BL 3.50/20/180 SN BK BX 2266-1963520000 BL 3.5/20 BK 1620400000-NDR
Description	TERM BLOCK PLUG 20POS STR 3.5MM
Detailed Description	20 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	22 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate BL
Packaging		Bulk
Part Status		Active
Color		Black
Mounting Type		Free Hanging (In-Line)
Number of Positions		20
Pitch		0.138" (3.50mm)
Type		Plug, Female Sockets
Operating Temperature		-50°C ~ 100°C
Termination Style		Screw - Clamping Yoke (Tension Sleeve)
Current - IEC		17A
Number of Levels		1
Wire Gauge or Range - AWG		14-28 AWG
Wire Gauge or Range - mm²		0.2-1.5mm²
Positions Per Level		20
Plug Wire Entry		180°
Contact Mating Finish		Tin
Current - UL		10 A
Voltage - IEC		320 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		1620400000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
