1626040000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1626040000
Manufacturer	Weidmuller
Other Part Numbers	281-5728-ND 1626040000-ND 281-5728 1626040000-NDR 2266-1687880000 SL5.00/90/8 PBT BK

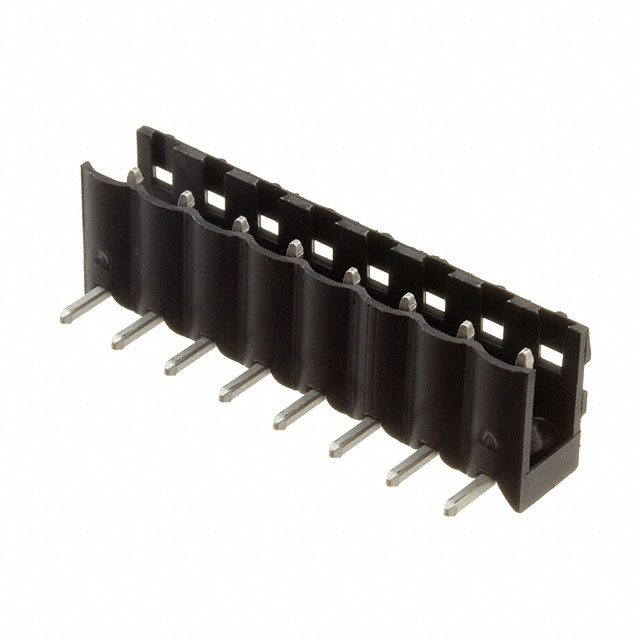

Description	TERM BLOCK HDR 8POS 90DEG 5MM
Detailed Description	8 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate SL
Packaging		Bulk
Part Status		Active
Color		Black
Mounting Type		Through Hole
Number of Positions		8
Pitch		0.197" (5.00mm)
Type		Header, Male Pins, Shrouded (2 Side)
Operating Temperature		-50°C ~ 100°C
Termination Style		Solder
Ingress Protection		IP20
Material Flammability Rating		UL94 V-0
Current - IEC		18A
Number of Levels		1
Positions Per Level		8
Contact Material		Copper Alloy
Header Orientation		90°, Right Angle
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Contact Tail Length		0.177" (4.50mm)
Insulation Height		0.330" (8.38mm)
Current - UL		15 A
Voltage - IEC		400 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
