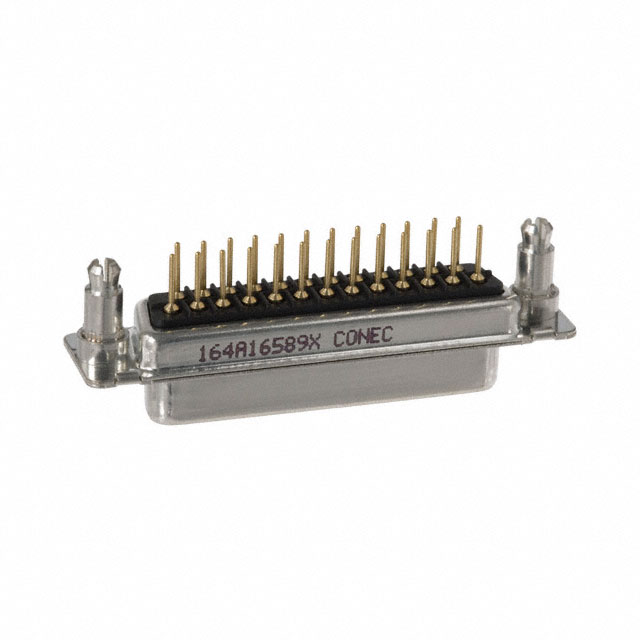

164A16589X _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	164A16589X
Manufacturer	CONEC (Amphenol CONEC)
Other Part Numbers	626-1054-ND 626-1054
Description	CONN D-SUB RCPT 25POS VERT SLDR
Detailed Description	25 Position D-Sub Receptacle, Female Sockets Connector
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		CONEC (Amphenol CONEC)
Series		164A
Packaging		Tray
Part Status		Active
Features		Board Lock
Connector Type		Receptacle, Female Sockets
Contact Finish		Gold
Color		Black
Voltage Rating		125V
Current Rating (Amps)		7.5A
Mounting Type		Through Hole
Number of Positions		25
Number of Rows		2
Operating Temperature		-55°C ~ 125°C
Contact Type		Signal
Flange Feature		Board Side (4-40)
Termination		Solder
Ingress Protection		IP20
Connector Style		D-Sub
Contact Finish Thickness		8.00µin (0.203µm)
Material Flammability Rating		UL94 V-0
Dielectric Material		Polybutylene Terephthalate (PBT), Glass Filled
Shell Material, Finish		Steel, Tin Plated
Contact Material		Copper Alloy
Shell Size, Connector Layout		3 (DB, B)
Contact Form		Machined

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
