1687820000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1687820000
Manufacturer	Weidmuller
Other Part Numbers	1687820000-ND BL 3.50/19/180LH SN OR BX 2266-1720000000 1687820000-NDR BL 3.5/19LH SN OR
Description	TERM BLOCK PLUG 19POS STR 3.5MM

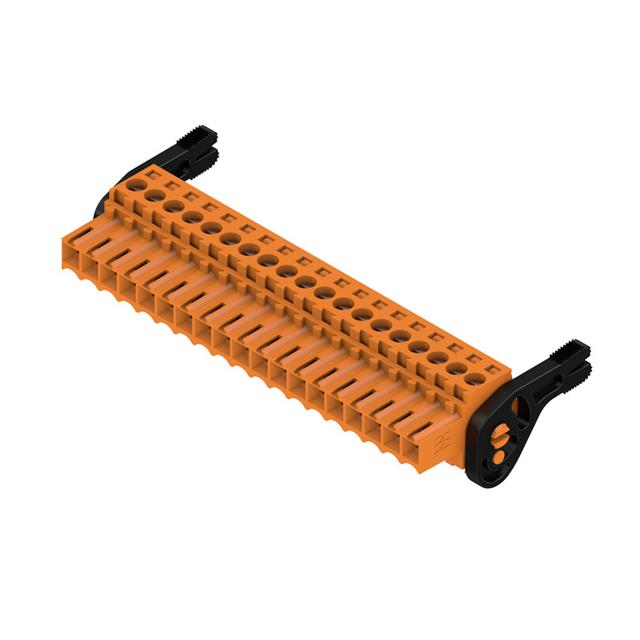

Detailed Description	19 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	27 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate BL
Packaging		Bulk
Part Status		Active
Features		Ejector Latches
Color		Orange
Mounting Type		Free Hanging (In-Line)
Number of Positions		19
Pitch		0.138" (3.50mm)
Type		Plug, Female Sockets
Operating Temperature		-50°C ~ 100°C
Termination Style		Screw - Clamping Yoke (Tension Sleeve)
Current - IEC		17A
Number of Levels		1
Wire Gauge or Range - AWG		14-28 AWG
Wire Gauge or Range - mm²		0.2-1.5mm²
Positions Per Level		19
Plug Wire Entry		180°
Contact Mating Finish		Tin
Current - UL		10 A
Voltage - IEC		320 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

QUANTITY	UNIT PRICE	EXT PRICE
24	$13.72	$329.28
