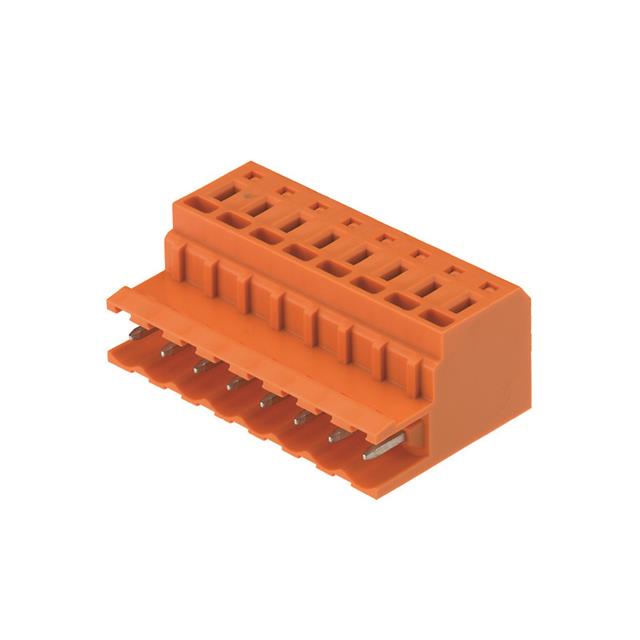

1709430000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1709430000
Manufacturer	Weidmuller
Other Part Numbers	1709430000-ND SLZF5.08/8SN OG 1709430000-NDR
Description	TERM BLOCK PLUG 8POS STR 5.08MM
Detailed Description	8 Position Terminal Block Plug, Male Pins 0.200" (5.08mm) 180° Free Hanging (In-Line)

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate SL
Packaging		Bulk
Part Status		Obsolete
Color		Orange
Mounting Type		Free Hanging (In-Line)
Number of Positions		8
Pitch		0.200" (5.08mm)
Type		Plug, Male Pins
Operating Temperature		-50°C ~ 100°C
Termination Style		Screwless - Spring Cage, Tension Clamp
Material Flammability Rating		UL94 V-0
Current - IEC		23A
Number of Levels		1
Wire Gauge or Range - AWG		12-26 AWG
Wire Gauge or Range - mm²		0.2-2.5mm²
Positions Per Level		8
Contact Material		Copper Alloy
Plug Wire Entry		180°
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Wire Strip Length		10mm
Insulation Height		0.602" (15.29mm)
Current - UL		15 A
Voltage - IEC		400 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

This product is no longer manufactured.
