1720017

1720017

Part Number	1720017
Manufacturer	Phoenix Contact
Other Part Numbers	277-5941-ND 277-5941 SMKDS5/2-9,5 1720017-NDR 1720017-ND

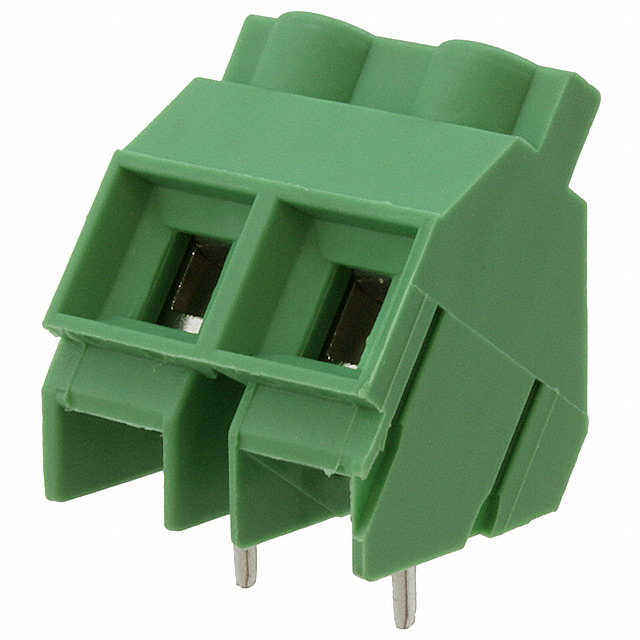

Description	TERM BLOCK 2POS 35DEG 9.53MM PCB
Detailed Description	2 Position Wire to Board Terminal Block 35° (145°) Angle with Board 0.375" (9.53mm) Through Hole
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		Phoenix Contact
Series		COMBICON SMKDS
Packaging		Bulk
Part Status		Active
Features		Interlocking (Side)
Color		Green
Mounting Type		Through Hole
Wire Gauge		10-30 AWG
Pitch		0.375" (9.53mm)
Mating Orientation		35° (145°) Angle with Board
Positions Per Level		2
Housing Material		Polyamide (PA), Nylon
Torque - Screw		0.5-0.6 Nm (4.4-5.3 Lb-In)
Screw Thread		M3
Wire Termination		Screw - Rising Cage Clamp
Current		30 A
Number of Levels		1
Voltage		300 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1720017

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
