Part Number | 1721680000 |
---|---|
Manufacturer | Weidmuller |
Other Part Numbers | 281-1682-ND 281-1682 LMZF5.08/6/90 |

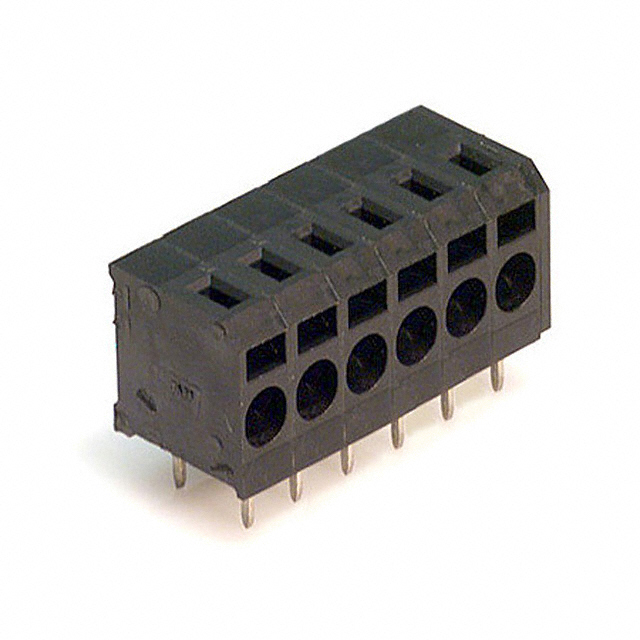

Description | TERM BLK 6P SIDE ENT 5.08MM PCB |
Detailed Description | 6 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Weidmuller | |
Series | Omnimate LMZF | |
Packaging | Bulk | |
Part Status | Obsolete | |
Color | Black | |
Mounting Type | Through Hole | |
Wire Gauge | 14-26 AWG | |
Pitch | 0.200" (5.08mm) | |
Operating Temperature | -20°C ~ 100°C | |
Mating Orientation | Horizontal with Board | |
Positions Per Level | 6 | |
Housing Material | Polyamide (PA66), Nylon 6/6 | |
Contact Material - Plating | Electrolytic Copper - Tin Plated | |
Wire Termination | Screwless - Spring Cage, Tension Clamp | |
Current | 10 A | |
Number of Levels | 1 | |
Voltage | 300 V |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 1721680000 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.90.4000 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected |
