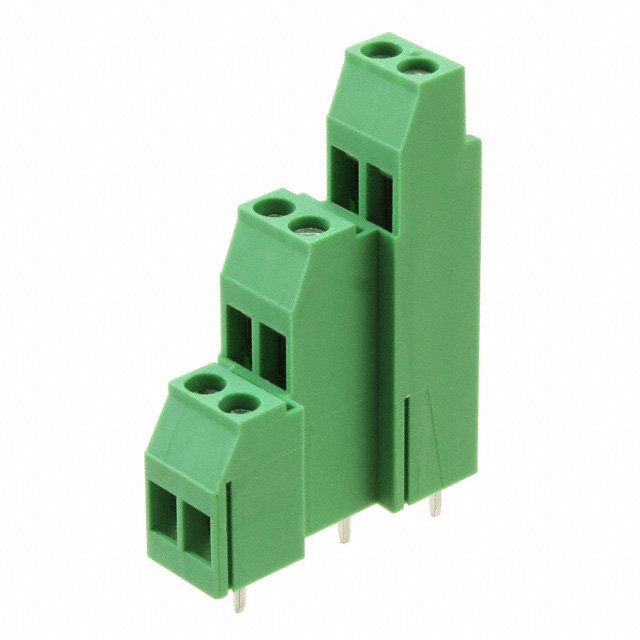

1723014

1723014

Part Number	1723014
Manufacturer	Phoenix Contact
Other Part Numbers	277-1377-ND 277-1377 MK3DS3/2-5,08 MK3DS 3/2-5,08
Description	TERM BLK 2P SIDE ENT 5.08MM PCB
Detailed Description	2 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		Phoenix Contact
Series		COMBICON MK3DS
Packaging		Bulk
Part Status		Active
Features		Interlocking (Side)
Color		Green
Mounting Type		Through Hole
Wire Gauge		12-30 AWG
Pitch		0.200" (5.08mm)
Mating Orientation		Horizontal with Board
Positions Per Level		2
Housing Material		Polyamide (PA), Nylon
Torque - Screw		0.5-0.6 Nm (4.4-5.3 Lb-In)
Screw Thread		M3
Wire Termination		Screw - Rising Cage Clamp
Current		20 A
Number of Levels		3
Voltage		300 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		1723014

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
