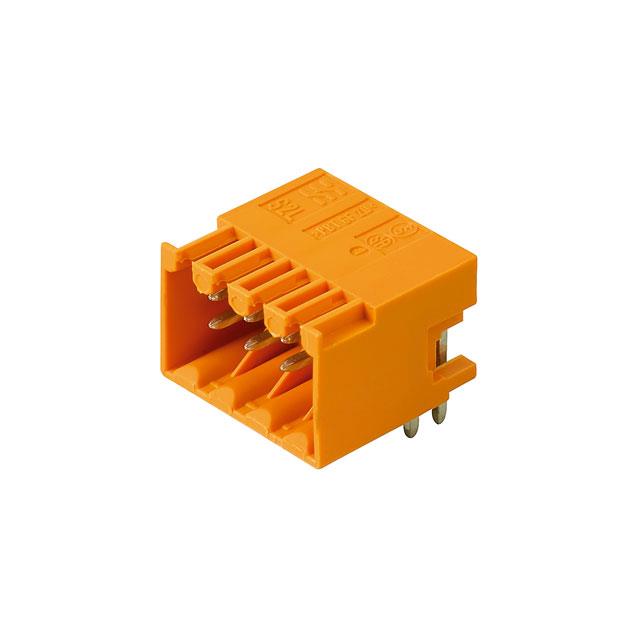

1727830000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1727830000
Manufacturer	Weidmuller
Other Part Numbers	1727830000-ND 1727830000-NDR 2266-1845350000 S2L 3.50/06/90G 3.5SN OR BX S2L3.5/90/6GSNOG
Description	TERM BLOCK HDR 6POS 90DEG 3.5MM
Detailed Description	6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Manufacturer Standard Lead Time	27 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate S2L
Packaging		Bulk
Part Status		Active
Color		Orange
Mounting Type		Through Hole
Number of Positions		6
Pitch		0.138" (3.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-50°C ~ 100°C
Termination Style		Solder
Ingress Protection		IP10
Material Flammability Rating		UL94 V-0
Current - IEC		10A
Number of Levels		2
Positions Per Level		3
Contact Material		Copper Alloy
Header Orientation		90°, Right Angle
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Contact Tail Length		0.138" (3.50mm)
Insulation Height		0.410" (10.41mm)
Current - UL		10 A
Voltage - IEC		250 V
Voltage - UL		150 V

RESOURCE TYPE		LINK
Datasheets		1727830000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

Can ship immediately.

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Bulk	1	$2.93	$2.93
Total Amount: $2.93
