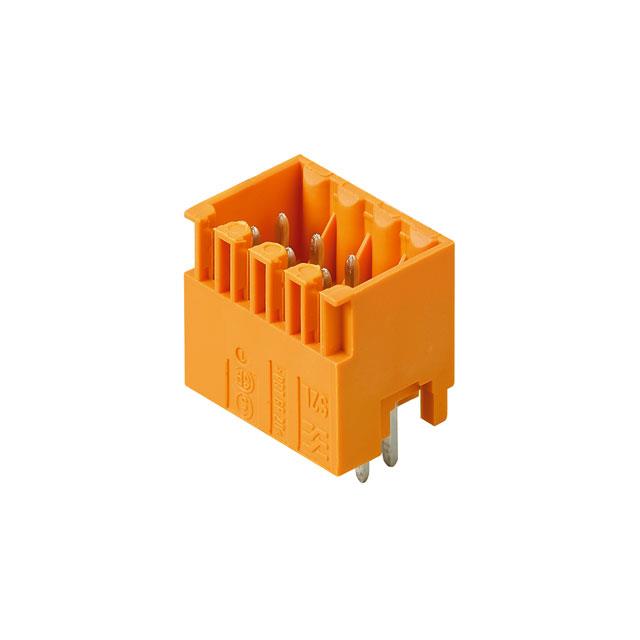

1729060000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1729060000
Manufacturer	Weidmuller
Other Part Numbers	1729060000-ND 1729060000-NDR S2L3.5/28/180G3.5SNB S2L 3.50/28/180G 3.5SN BK BX
Description	TERM BLOCK HDR 28POS VERT 3.5MM
Detailed Description	28 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Manufacturer Standard Lead Time	27 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate S2L
Packaging		Bulk
Part Status		Active
Color		Black
Mounting Type		Through Hole
Number of Positions		28
Pitch		0.138" (3.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-50°C ~ 100°C
Termination Style		Solder
Ingress Protection		IP10
Material Flammability Rating		UL94 V-0
Current - IEC		10A
Number of Levels		2
Positions Per Level		14
Contact Material		Copper Alloy
Header Orientation		Vertical
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Contact Tail Length		0.138" (3.50mm)
Insulation Height		0.559" (14.20mm)
Current - UL		10 A
Voltage - IEC		250 V
Voltage - UL		150 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
