1748110000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1748110000
Manufacturer	Weidmuller
Other Part Numbers	1748110000-ND B2L 3.5/26F SN OR 2266-1680411686 1748110000-NDR B2L 3.50/26/180F SN OR BX
Description	TERM BLOCK PLUG 26POS STR 3.5MM

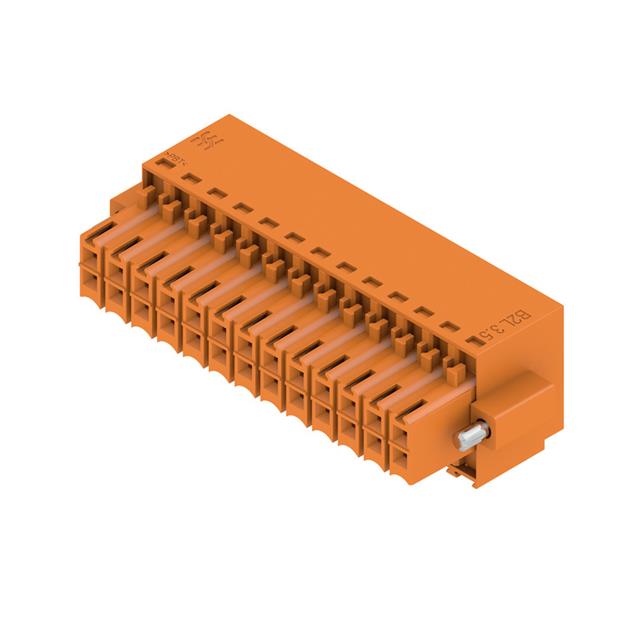

Detailed Description	26 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate B2L
Packaging		Bulk
Part Status		Obsolete
Features		Mating Flange
Color		Orange
Mounting Type		Free Hanging (In-Line)
Number of Positions		26
Pitch		0.138" (3.50mm)
Type		Plug, Female Sockets
Operating Temperature		-50°C ~ 100°C
Termination Style		Screwless - Spring Cage, Tension Clamp
Ingress Protection		IP20
Material Flammability Rating		UL94 V-0
Current - IEC		10.3A
Number of Levels		2
Wire Gauge or Range - AWG		16-28 AWG
Wire Gauge or Range - mm²		0.2-1mm²
Positions Per Level		13
Contact Material		Copper Alloy
Plug Wire Entry		180°
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Wire Strip Length		7mm
Insulation Height		0.618" (15.70mm)
Current - UL		10 A
Voltage - IEC		250 V
Voltage - UL		150 V

RESOURCE TYPE		LINK
Datasheets		1748110000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

This product is no longer manufactured.
