Part Number	1748500000
Manufacturer	Weidmuller
Other Part Numbers	281-1864-ND B2L 3.50/08/180LH SN BK BX B2L3.5/8LH 281-1864 2266-1861540000

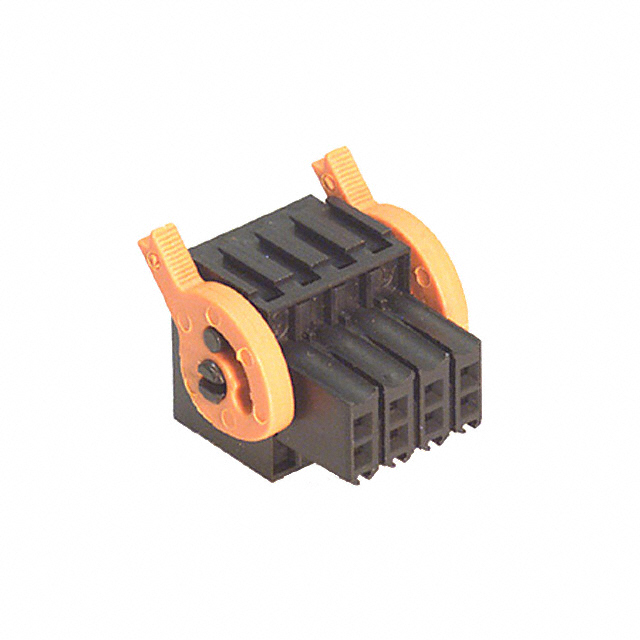

Description	TERM BLOCK PLUG 8POS STR 3.5MM
Detailed Description	8 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate B2L
Packaging		Bulk
Part Status		Obsolete
Features		Ejector Latches
Color		Black
Mounting Type		Free Hanging (In-Line)
Number of Positions		8
Pitch		0.138" (3.50mm)
Type		Plug, Female Sockets
Operating Temperature		-50°C ~ 100°C
Termination Style		Screwless - Spring Cage, Tension Clamp
Ingress Protection		IP20
Material Flammability Rating		UL94 V-0
Current - IEC		10.3A
Number of Levels		2
Wire Gauge or Range - AWG		16-28 AWG
Wire Gauge or Range - mm²		0.2-1mm²
Positions Per Level		4
Contact Material		Copper Alloy
Plug Wire Entry		180°
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Wire Strip Length		7mm
Insulation Height		0.618" (15.70mm)
Current - UL		10 A
Voltage - IEC		250 V
Voltage - UL		150 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

This product is no longer manufactured.
