1753142001 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1753142001
Manufacturer	Weidmuller
Other Part Numbers	1753142001-ND SL SMT 3.5/180/18 G 2266-6720005420 1753142001-NDR SL-SMT 3.50/18/180G 1.5SN BK

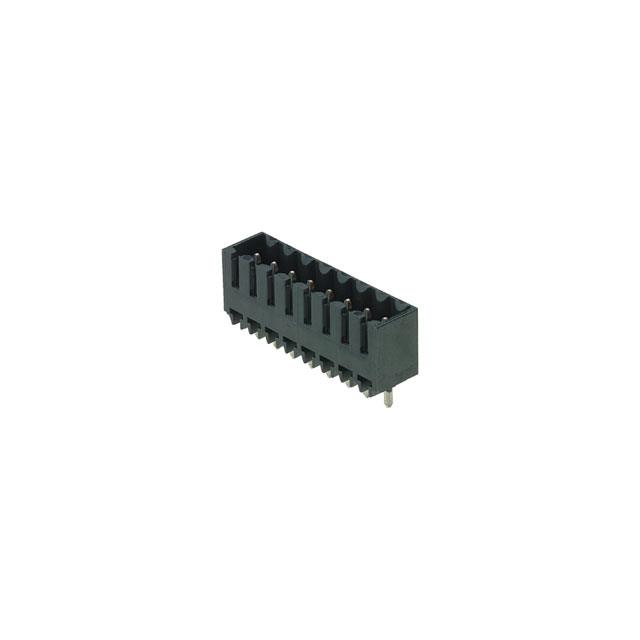

Description	TERM BLOCK HDR 18POS VERT 3.5MM
Detailed Description	18 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Manufacturer Standard Lead Time	27 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate SL
Packaging		Bulk
Part Status		Active
Color		Black
Mounting Type		Through Hole
Number of Positions		18
Pitch		0.138" (3.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-50°C ~ 100°C
Termination Style		Solder
Ingress Protection		IP10
Material Flammability Rating		UL94 V-0
Current - IEC		15A
Number of Levels		1
Positions Per Level		18
Contact Material		Copper Alloy
Header Orientation		Vertical
Housing Material		Liquid Crystal Polymer (LCP), Glass Filled
Contact Mating Finish		Tin
Contact Tail Length		0.059" (1.50mm)
Insulation Height		0.435" (11.05mm)
Current - UL		10 A
Voltage - IEC		320 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
