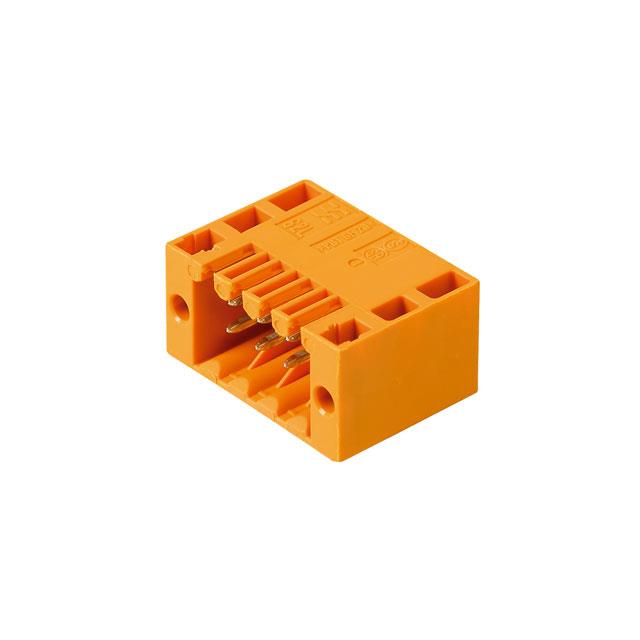

1756190000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1756190000
Manufacturer	Weidmuller
Other Part Numbers	1756190000-ND 1756190000-NDR S2L3.5/12/90F3.5AUBK
Description	TERM BLOCK HDR 12POS 90DEG 3.5MM
Detailed Description	12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate S2L
Packaging		Bulk
Part Status		Active
Features		Mating and Mounting Flange
Color		Black
Mounting Type		Through Hole
Number of Positions		12
Pitch		0.138" (3.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-50°C ~ 100°C
Termination Style		Solder
Ingress Protection		IP10
Material Flammability Rating		UL94 V-0
Current - IEC		10A
Number of Levels		2
Positions Per Level		6
Contact Material		Copper Alloy
Header Orientation		90°, Right Angle
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Gold
Contact Tail Length		0.138" (3.50mm)
Insulation Height		0.413" (10.49mm)
Current - UL		10 A
Voltage - IEC		250 V
Voltage - UL		150 V

RESOURCE TYPE		LINK
Datasheets		1756190000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
