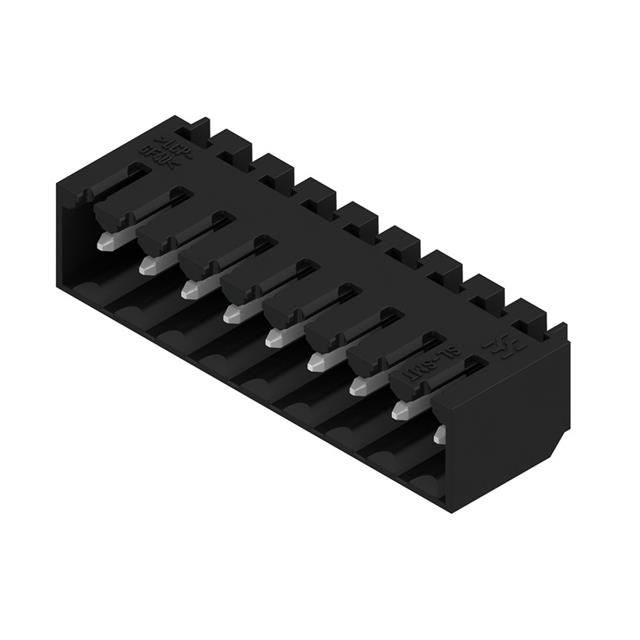

1761612001 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1761612001
Manufacturer	Weidmuller
Other Part Numbers	1761612001-ND 2266-1925420500 SL-SMT3.50/09/90G 1.5SN BK BX 1761612001-NDR SL SMT 3.5/90/9 G BK
Description	TERM BLOCK HDR 9POS 90DEG 3.5MM
Detailed Description	9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Manufacturer Standard Lead Time	27 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Weidmuller
Series		Omnimate SL
Packaging		Bulk
Part Status		Active
Color		Black
Mounting Type		Through Hole
Number of Positions		9
Pitch		0.138" (3.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-50°C ~ 100°C
Termination Style		Solder
Current - IEC		15A
Number of Levels		1
Positions Per Level		9
Header Orientation		90°, Right Angle
Contact Mating Finish		Tin
Current - UL		10 A
Voltage - IEC		320 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
