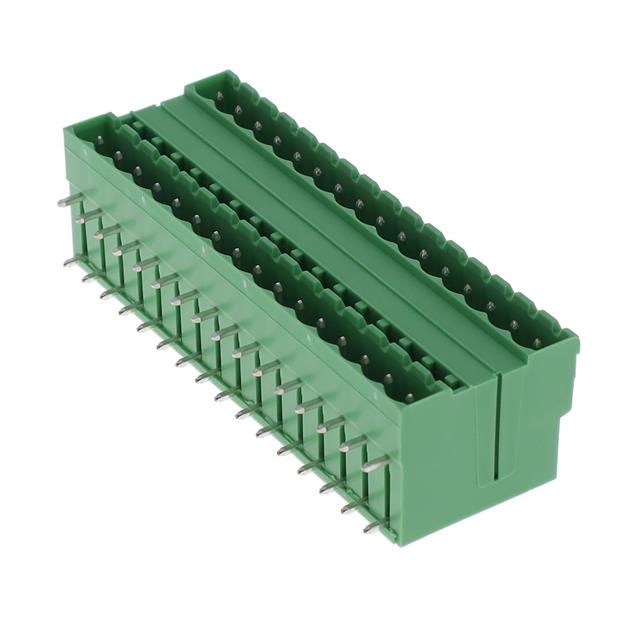

1762839 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	1762839
Manufacturer	Phoenix Contact
Other Part Numbers	277-1395-ND 277-1395 MDSTB2,5/16-G1 MDSTB 2,5/16-G1 277-1395-NDR
Description	TERM BLOCK HDR 32POS 90DEG 5MM
Detailed Description	32 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		COMBICON MDSTB
Packaging		Bulk
Part Status		Active
Color		Green
Mounting Type		Through Hole
Number of Positions		32
Pitch		0.197" (5.00mm)
Type		Header, Male Pins, Shrouded (4 Side)
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		10A
Number of Levels		2
Positions Per Level		16
Header Orientation		90°, Right Angle
Housing Material		Polyamide (PA), Nylon
Contact Mating Finish		Tin
Contact Tail Length		0.138" (3.50mm)
Insulation Height		1.122" (28.50mm)
Current - UL		15 A
Voltage - IEC		630 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		1762839

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
