1766370000

1766370000

Part Number	1766370000
Manufacturer	Weidmuller
Other Part Numbers	281-4742-ND 2266-1747850000 1766370000-ND 281-4742 1766370000-NDR LM1H 5.08/90/3 OR LM1H 5.08/03/90 3.5SN OR BX

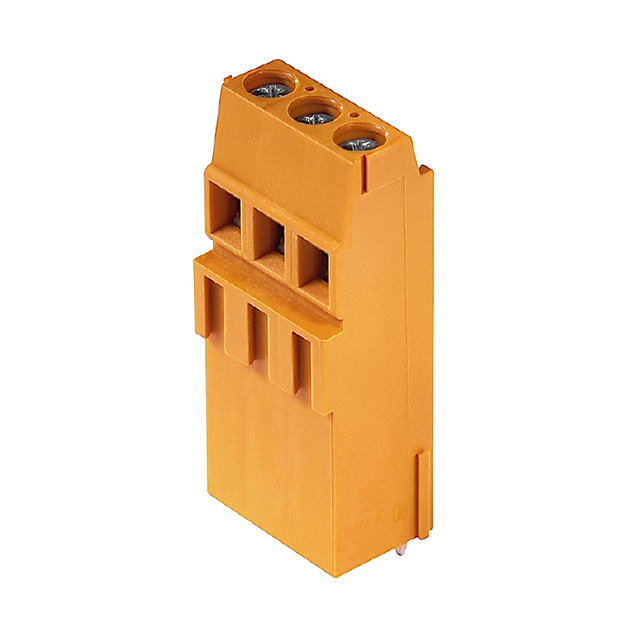

Description	TERM BLK 3P SIDE ENT 5.08MM PCB
Detailed Description	3 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
Manufacturer Standard Lead Time	10 weeks

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		Weidmuller
Series		Omnimate LM
Packaging		Bulk
Part Status		Active
Features		Interlocking (Rear, Side), Mid Wire Entry Level
Color		Orange
Mounting Type		Through Hole
Wire Gauge		14-24 AWG
Pitch		0.200" (5.08mm)
Mating Orientation		Horizontal with Board
Positions Per Level		3
Wire Termination		Screw - Clamping Yoke, Tension Sleeve
Current		15 A
Number of Levels		1
Voltage		300 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

In Stock: 75

Can ship immediately.
