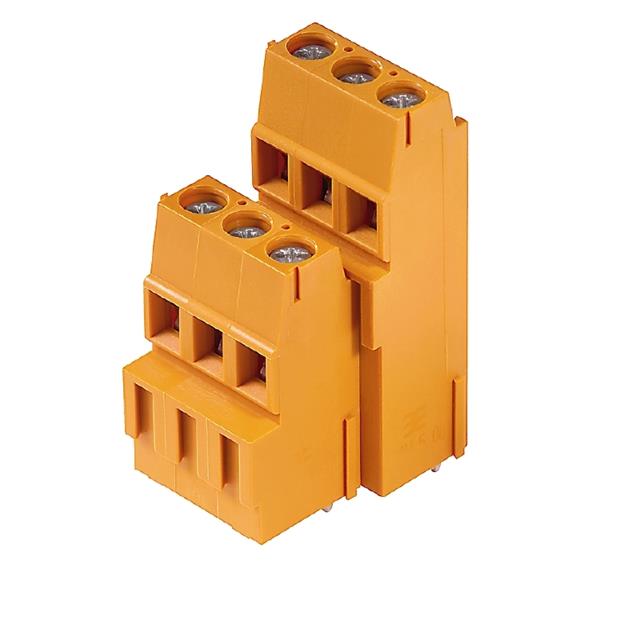

1769370000 _ Wire to Board_Terminal Blocks_Connectors, Interconnects

Part Number	1769370000
Manufacturer	Weidmuller
Other Part Numbers	1769370000-ND 1769370000-NDR 2266-1891190000 LM2H 5.08/90/30 OR LM2H 5.08/30/90 3.5SN OR BX
Description	TERM BLK 15P SIDE ENT 5.08MM PCB
Detailed Description	15 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
Manufacturer Standard Lead Time	27 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		Weidmuller
Series		Omnimate LM
Packaging		Bulk
Part Status		Active
Features		Interlocking (Side)
Color		Orange
Mounting Type		Through Hole
Wire Gauge		14-24 AWG
Pitch		0.200" (5.08mm)
Operating Temperature		-50°C ~ 120°C
Mating Orientation		Horizontal with Board
Positions Per Level		15
Housing Material		Thermoplastic, Wemid
Contact Material - Plating		Copper Alloy - Tin Plated
Torque - Screw		0.4-0.5 Nm (3.5-4.4 Lb-In)
Screw Thread		M2.5
Wire Termination		Screw - Clamping Yoke, Tension Sleeve
Current		15 A
Number of Levels		2
Voltage		300 V

RESOURCE TYPE		LINK
Datasheets		1769370000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
